# Endpoint Generator

Simplify integration with the Endpoint Generator. Configure Residential Proxy locations, sessions, and authentication to export your lists.

The Endpoint Generator is an automated tool accessed via the [Oxylabs Dashboard](https://dashboard.oxylabs.io/?route=/overview/RP/endpoint-generator) and designed to generate custom lists of Residential Proxy endpoints. Endpoint generator can be found in your Residential Proxy product instance **Overview**:

<figure><img src="https://3826932121-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FBQ7Zf9paoN3FTeGcyfY1%2Fuploads%2FrHCBVyXaPFpP0V2ovcu5%2FScreenshot%202026-10-05%20at%2004.25.56.png?alt=media&amp;token=3fadc048-8e78-4638-81ed-ebdfeb532ce7" alt=""><figcaption></figcaption></figure>

It allows you to select location, session type, protocol format, and output options, then export ready-to-use proxy lists in CSV, JSON, or TXT formats.

### How to generate proxy endpoints

{% stepper %}
{% step %}

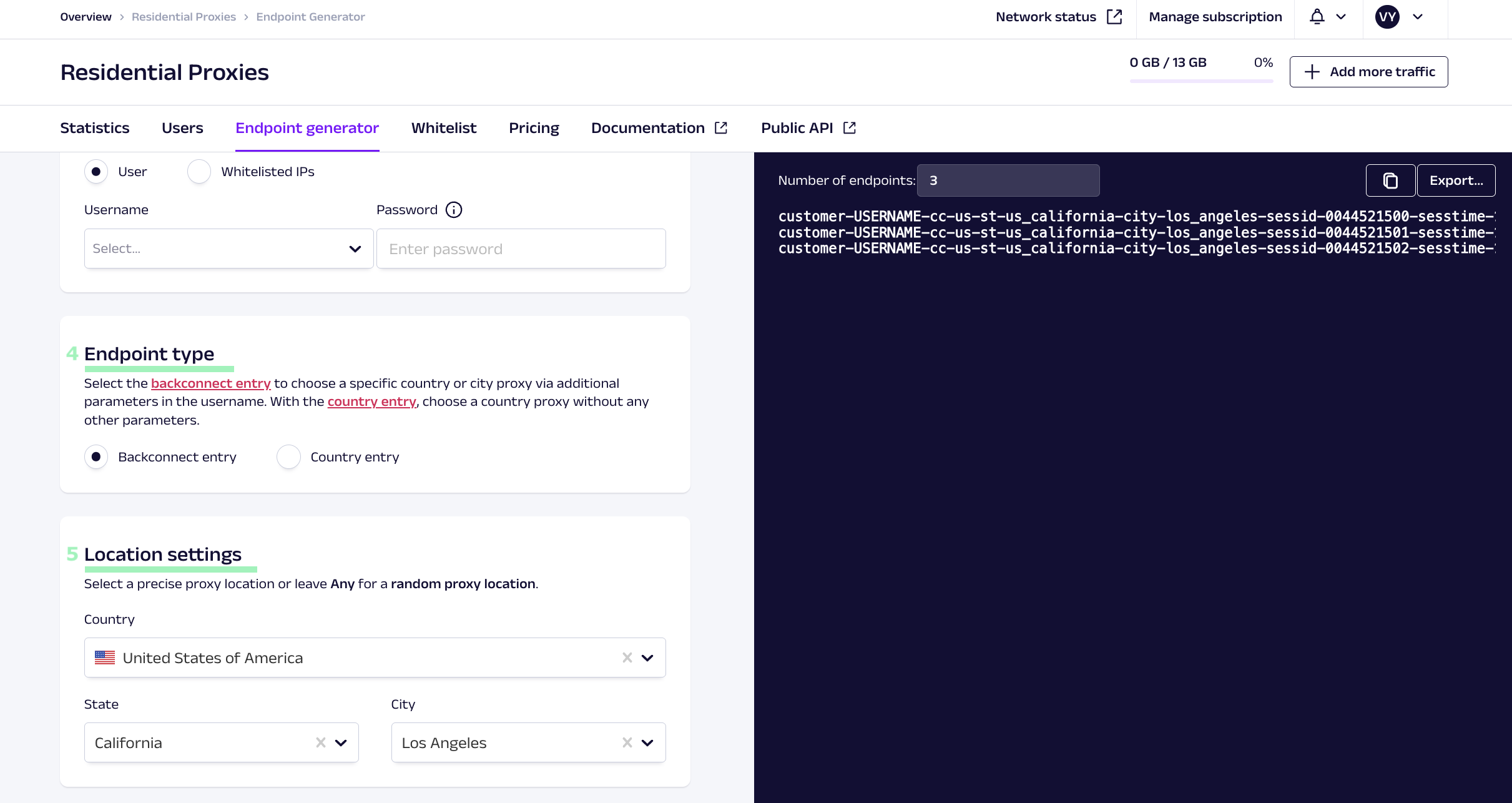

### Select proxy country

Choose the Residential proxy country and city. If left as `Any`, random location will be selected.

<figure><img src="https://3826932121-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FBQ7Zf9paoN3FTeGcyfY1%2Fuploads%2FvAG0awF8ahTSrfjXOjZH%2FScreenshot%202026-10-05%20at%2004.31.30.png?alt=media&amp;token=3c6d50f3-4ec5-4c4a-aeb4-0cce6f4ae941" alt=""><figcaption></figcaption></figure>

Check the [location settings](/products/proxies/residential-proxies/location-settings.md) page to learn more.
{% endstep %}

{% step %}

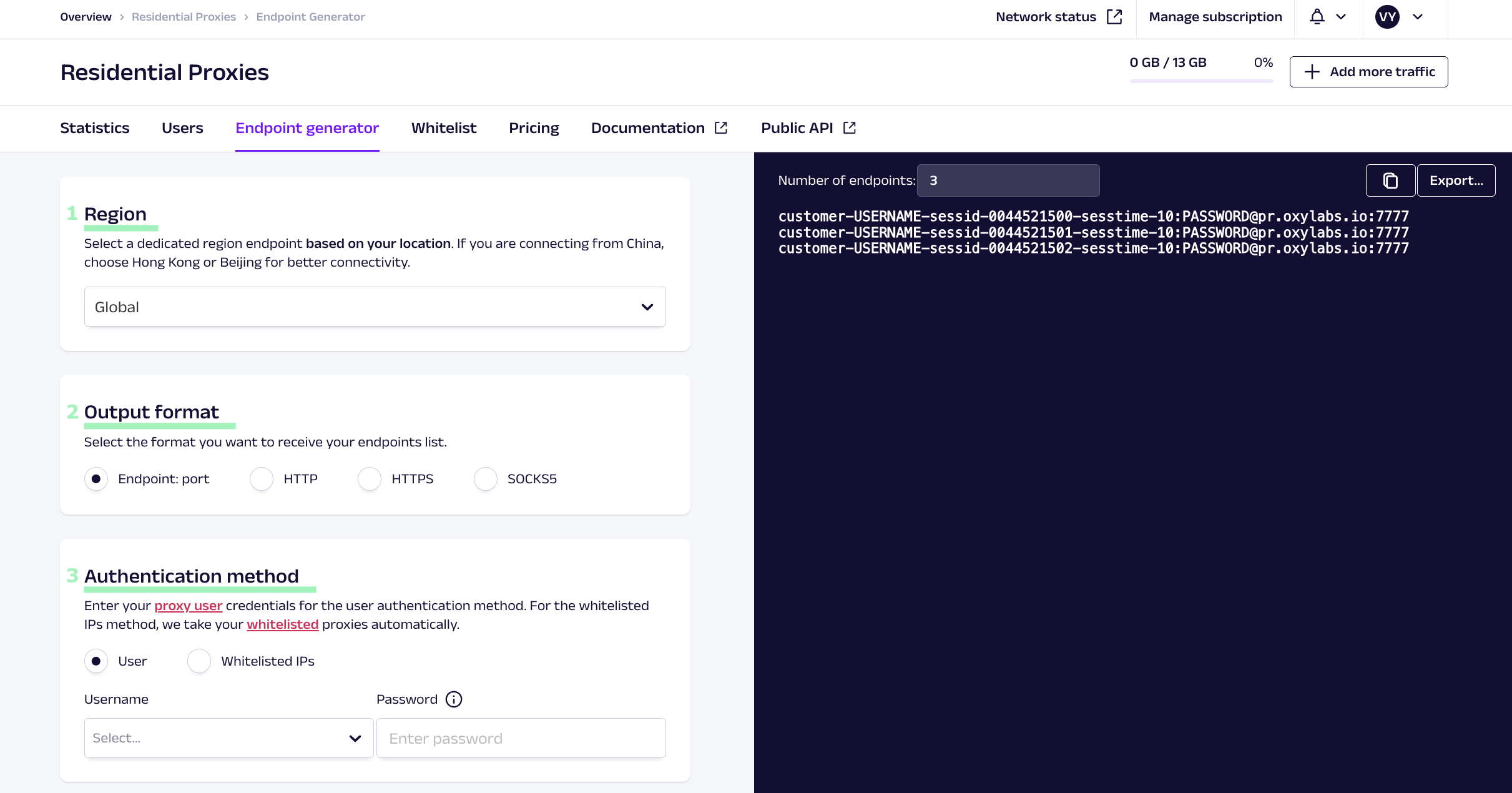

### Select region

Choose your connection region based on your client application's location:

* **Global:** Standard entry nodes for connections.
* **Hong Kong / Beijing:** Dedicated entry nodes optimized for connections from [China](/products/proxies/residential-proxies/location-settings.md#china-entry-nodes).

<figure><img src="https://3826932121-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FBQ7Zf9paoN3FTeGcyfY1%2Fuploads%2FAh72IEamytZyFMXt4cjm%2FScreenshot%202026-10-05%20at%2004.27.29.png?alt=media&amp;token=f8cc197e-811c-444f-a982-82a7cd672487" alt="" width="375"><figcaption></figcaption></figure>
{% endstep %}

{% step %}

### Set proxy protocol

Choose from available proxy protocols:

* **HTTP:** `http://pr.oxylabs.io:7777`
* **HTTPS:** `https://pr.oxylabs.io:7777`
* **SOCKS5:** `socks5h://pr.oxylabs.io:7777`
  {% endstep %}

{% step %}

### Select session type

* ​[**Sticky session**](https://app.gitbook.com/o/YFRJGnXcbhIMTe1cuCmz/sites/site_rPdpB/s/BQ7Zf9paoN3FTeGcyfY1/proxies/residential-proxies/session-control)**:** Allows you to keep the same IP address for a specified duration (max 1440 minutes).
* **Rotating session:** Receive a new IP address with each request.
* [**Sticky session (one-IP)**](#single-ip-strict-session-binding-sessid_oneip)**:** Binds strictly to a single exit node. Fails with HTTP `502` if IP drops.
  {% endstep %}

{% step %}

### Set duration (Sticky session)

Choose the session duration on the slider for your sticky session between `1` minute and `1440` minutes (default – `10`).
{% endstep %}

{% step %}

### Select output format

Choose the output format from:

* cURL
* Python
* PHP
* Node.js
* GO
* Java
* Integrations

<figure><img src="https://3826932121-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FBQ7Zf9paoN3FTeGcyfY1%2Fuploads%2Fm08UmoUrS3FzVextbTHO%2FScreenshot%202026-10-05%20at%2004.46.04.png?alt=media&amp;token=2c262214-27f4-4cf1-ae28-a2e2d33e5751" alt=""><figcaption></figcaption></figure>
{% endstep %}
{% endstepper %}

That's it! You have successfully created a ready-to-use list of Residential Proxies endpoints!


---
