# 云存储

将抓取结果直接检索至您的 S3、GCS、OSS 或其他兼容 S3 的存储。

网页爬虫API 作业结果存储在我们的存储中。您可以通过以下方式从我们的存储中获取结果： `GET`获取 `/results` 端点。

作为替代方案，我们可以将结果上传到您的云存储。这样，您无需额外请求来获取结果——所有内容都会直接进入您的存储桶。

{% hint style="info" %}
云存储集成仅适用于 [**Push-Pull**](https://developers.oxylabs.io/products/cn/web-scraper-api/integration-methods/push-pull.md) 集成方式。
{% endhint %}

目前，我们支持以下云存储服务：

* [**Google Cloud Storage**](#google-cloud-storage)
* [**Amazon S3**](#amazon-s3)
* [**Alibaba Cloud 对象存储服务（OSS）**](#alibaba-cloud-object-storage-service-oss)
* [**BytePlus Torch Object Storage (TOS)**](#byteplus-tos)
* [**其他兼容 S3 的存储**](#other-s3-compatible-storage)

如果您想使用其他类型的存储，请联系您的客户经理，讨论功能交付时间线。

上传路径如下： `YOUR_BUCKET_NAME/job_ID.json`。您会在提交作业后收到的响应中找到作业 ID。

#### 输入

<table><thead><tr><th>参数</th><th width="187.33333333333331">说明</th><th>有效值</th></tr></thead><tbody><tr><td><code>storage_type</code></td><td>您的云存储类型。</td><td><p><code>gcs</code> (Google Cloud Storage);</p><p><code>s3</code> (AWS S3); <code>tos</code> (BytePlus TOS);</p><p><code>s3_compatible</code> (任何兼容 S3 的存储)。</p></td></tr><tr><td><code>storage_url</code></td><td>您的云存储存储桶名称 / URL。</td><td><ul><li>任意 <code>s3</code> , <code>gcs</code> ，或 <code>tos</code> 存储桶名称；</li><li>任意 <code>兼容 S3</code> 存储 URL。</li></ul></td></tr></tbody></table>

## **Google Cloud Storage**

下面的载荷将使网页爬虫API抓取 `https://example.com` 并将结果放入 Google Cloud Storage 存储桶。

```json
{
    "source": "universal",
    "url": "https://example.com",
    "storage_type": "gcs",
    "storage_url": "bucket_name/path"
}
```

要将作业结果上传到您的 Google Cloud Storage 存储桶，请按如下所示为我们的服务设置特殊权限：

{% stepper %}
{% step %}

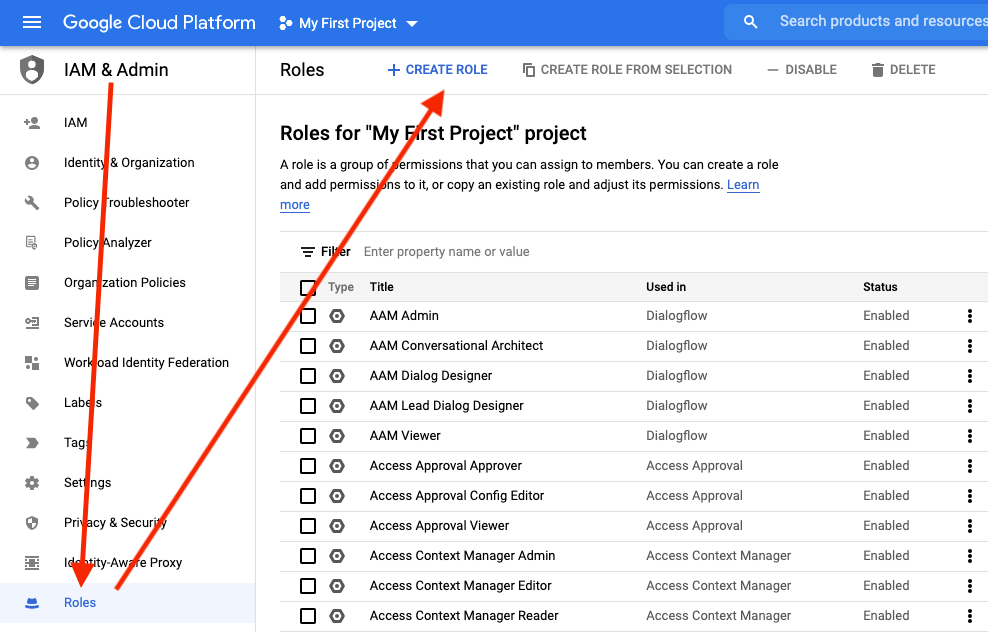

**创建自定义角色**

<div align="left"><img src="https://3714446197-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FBQ7Zf9paoN3FTeGcyfY1%2Fuploads%2Fgit-blob-32292235b253d2435d5e0a8d88558c068872956d%2Fgcs-1.png?alt=media" alt=""></div>
{% endstep %}

{% step %}

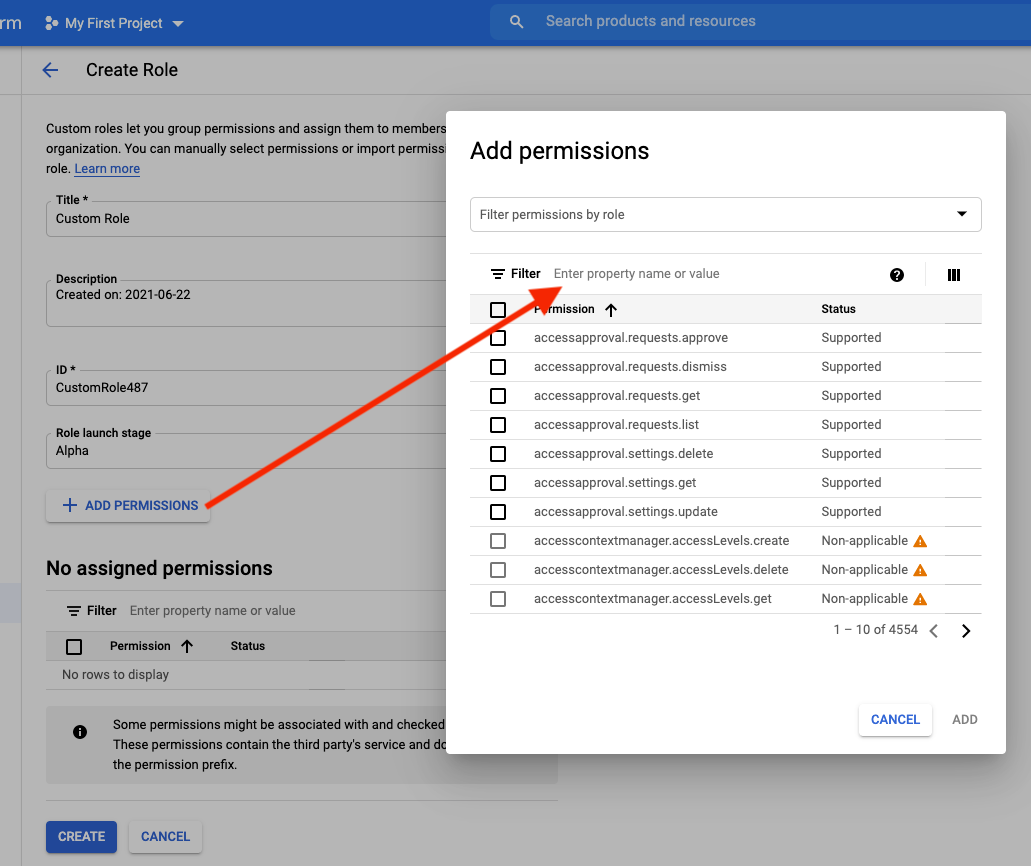

**添加 `storage.objects.create` 权限**

<div align="left"><img src="https://3714446197-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FBQ7Zf9paoN3FTeGcyfY1%2Fuploads%2Fgit-blob-815bad910c08ed706d3df43ddb20fff0f0563d6d%2Fgcs-2.png?alt=media" alt=""></div>
{% endstep %}

{% step %}

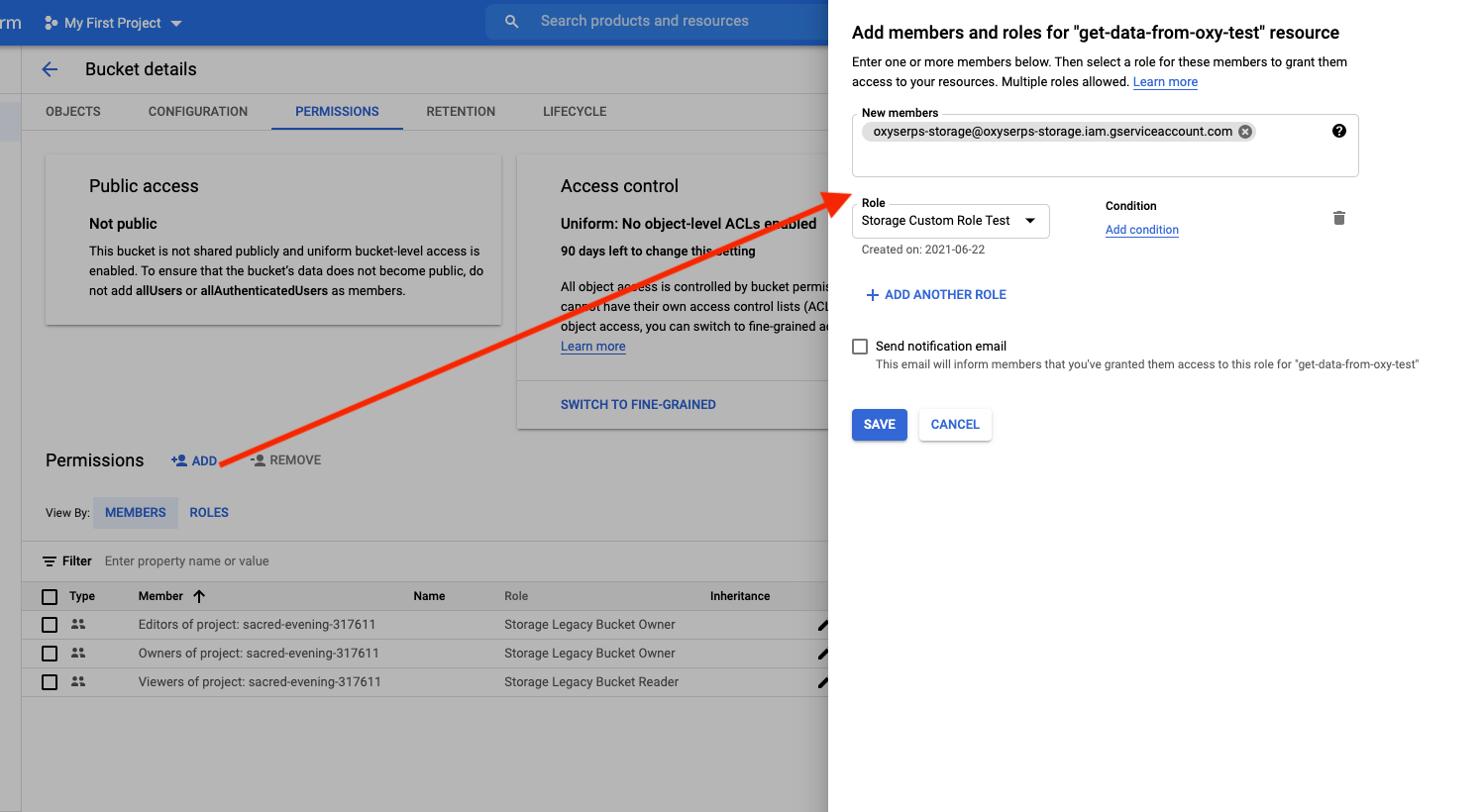

**将其分配给 Oxylabs**

在 **新成员** 字段中，输入以下 **Oxylabs 服务账户邮箱**:

```
oxyserps-storage@oxyserps-storage.iam.gserviceaccount.com
```

<div align="left"><img src="https://3714446197-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FBQ7Zf9paoN3FTeGcyfY1%2Fuploads%2Fgit-blob-df5b74908cc6943c8d620b5e14487f2d003ebe43%2Fgcs-3.png?alt=media" alt=""></div>
{% endstep %}
{% endstepper %}

## **Amazon S3**

下面的载荷将使网页爬虫API抓取 `https://example.com` 并将结果放入 Amazon S3 存储桶。

```json
{
    "source": "universal",
    "url": "https://example.com",
    "storage_type": "s3",
    "storage_url": "bucket_name/path"
}
```

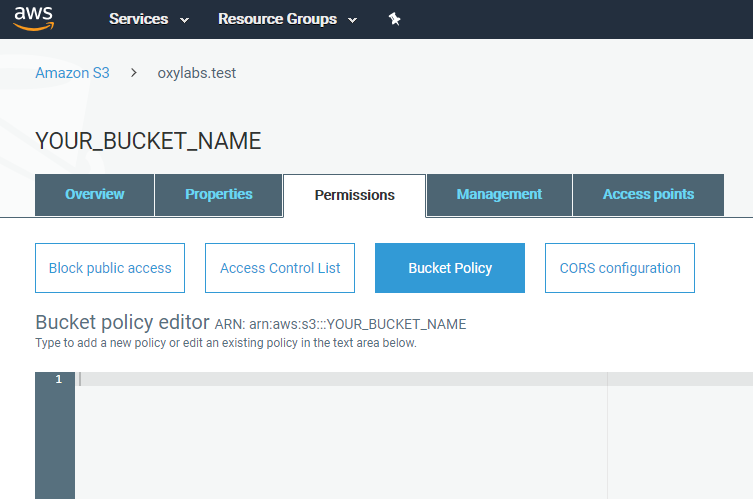

要将作业结果上传到您的 Amazon S3 存储桶，请为我们的服务设置访问权限。为此，请前往 [**https://s3.console.aws.amazon.com/**](https://s3.console.aws.amazon.com/) → **`S3`** → **`存储`** → **`存储桶名称`**` `` ``（如果您没有，请创建一个新的） ` → **`权限`** → **`存储桶策略`**.

<div align="left"><img src="https://3714446197-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FBQ7Zf9paoN3FTeGcyfY1%2Fuploads%2Fgit-blob-1c27676a6e925e4a8c257cf422e991c8a6a1af2c%2Fs3_bucket_policy.png?alt=media" alt=""></div>

您可以在下面的附件或代码示例区域中找到存储桶策略。

{% file src="/files/613dde66c560f9f6d82fc2197d93ed7699fd0ddf" %}
s3 存储桶策略
{% endfile %}

不要忘记修改下方的存储桶名称 `YOUR_BUCKET_NAME`。此策略允许我们向您的存储桶写入，为您提供对已上传文件的访问权限，并知道存储桶位置。

```json
{
    "Version": "2012-10-17",
    "Id": "Policy1577442634787",
    "Statement": [
        {
            "Sid": "Stmt1577442633719",
            "Effect": "Allow",
            "Principal": {
                "AWS": "arn:aws:iam::324311890426:user/oxylabs.s3.uploader"
            },
            "Action": "s3:GetBucketLocation",
            "Resource": "arn:aws:s3:::YOUR_BUCKET_NAME"
        },
        {
            "Sid": "Stmt1577442633719",
            "Effect": "Allow",
            "Principal": {
                "AWS": "arn:aws:iam::324311890426:user/oxylabs.s3.uploader"
            },
            "Action": [
                "s3:PutObject",
                "s3:PutObjectAcl"
            ],
            "Resource": "arn:aws:s3:::YOUR_BUCKET_NAME/*"
        }
    ]
}
```

## Alibaba Cloud 对象存储服务（OSS）

下面的载荷将使网页爬虫API抓取 `https://example.com` 并将结果放入 Alibaba Cloud OSS 存储桶。

```json
{
    "source": "universal",
    "url": "https://example.com",
    "storage_type": "s3_compatible",
    "storage_url": "https://ACCESS_KEY_ID:ACCESS_KEY_SECRET@BUCKET_NAME.oss-REGION.aliyuncs.com/FOLDER_NAME"
}
```

### 构建存储 URL <a href="#forming-the-storage-url" id="forming-the-storage-url"></a>

存储 URL 格式：

```http
https://ACCESS_KEY_ID:ACCESS_KEY_SECRET@BUCKET_NAME.oss-REGION.aliyuncs.com/FOLDER_NAME
```

{% hint style="warning" %}
目前， **我们无法上传到根存储桶**。请为您的上传提供一个具体的文件夹名称。
{% endhint %}

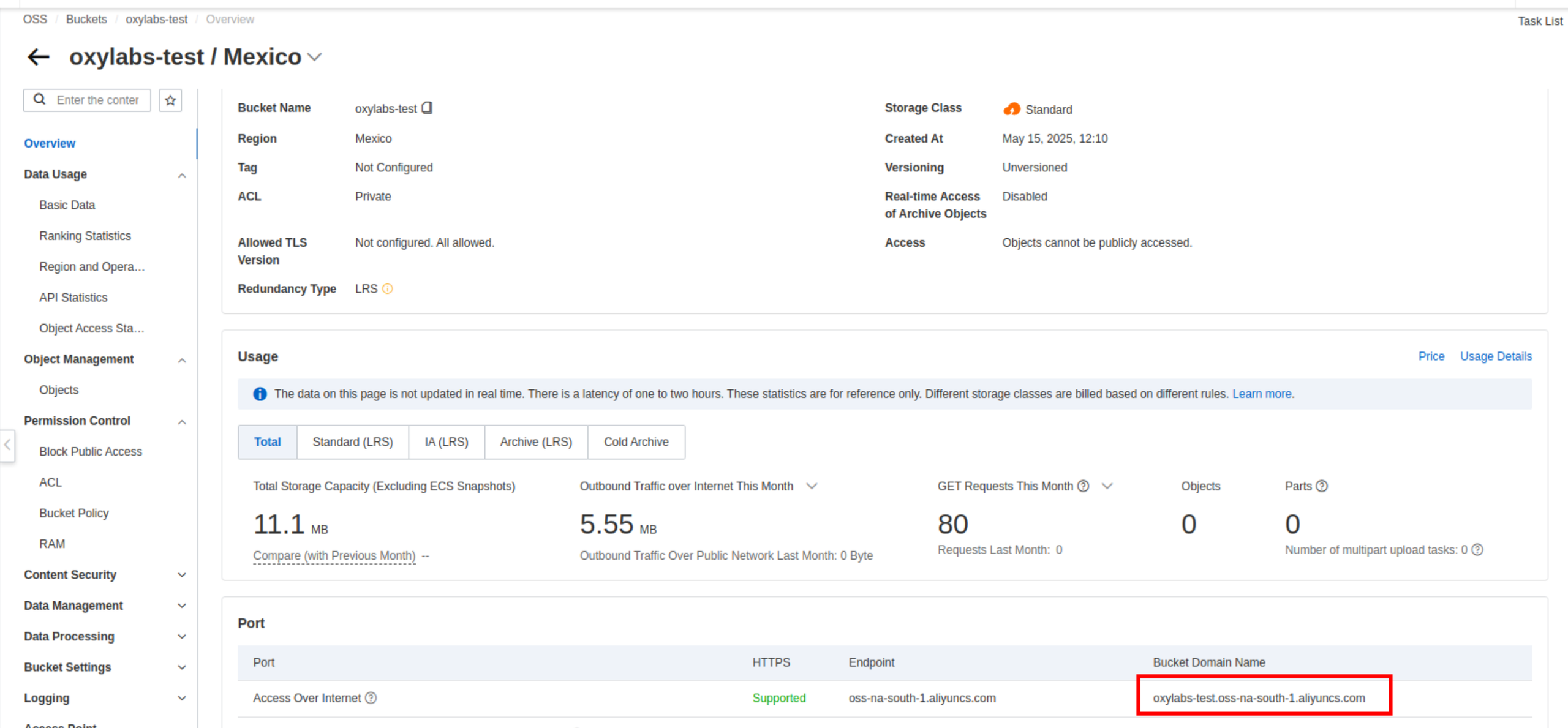

以下是您可以找到 `BUCKET_NAME` 和 `oss-REGION` 的存储桶位置：

<figure><img src="https://3714446197-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FBQ7Zf9paoN3FTeGcyfY1%2Fuploads%2Fgit-blob-3258197766d6326f572b9230603b3f700738db36%2Fimage.png?alt=media" alt=""><figcaption></figcaption></figure>

### 创建 Access Key 和 Secret <a href="#creating-the-access-key-and-secret" id="creating-the-access-key-and-secret"></a>

为了使用 Alibaba OSS 的 S3 兼容接口，您必须创建 `ACCESS_KEY_ID` 和 `ACCESS_KEY_SECRET` ，如下所示。更多信息请参见 [![](https://img.alicdn.com/tfs/TB1ugg7M9zqK1RjSZPxXXc4tVXa-32-32.png)如何使用 Amazon S3 SDK 访问 OSS](https://www.alibabacloud.com/help/en/oss/developer-reference/use-amazon-s3-sdks-to-access-oss?spm=a2c63.p38356.0.i1).

{% stepper %}
{% step %}

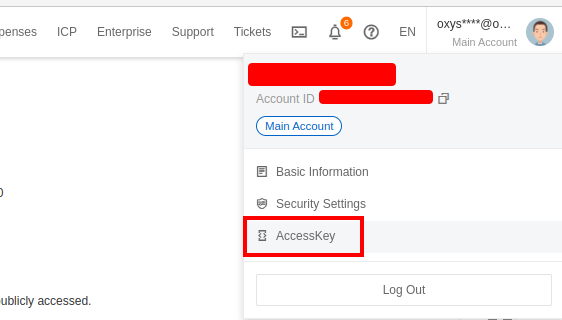

转到 **AccessKey 账户菜单**

<div align="left"><figure><img src="https://3714446197-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FBQ7Zf9paoN3FTeGcyfY1%2Fuploads%2Fgit-blob-7a0c00eac6fd02fed28c7be5a5522985de3625d5%2Fimage.png?alt=media" alt="" width="422"><figcaption></figcaption></figure></div>
{% endstep %}

{% step %}
登录到 **RAM console**

访问 [RAM console](https://ram.console.aliyun.com/) 通过 **Alibaba Cloud 账户** 或 **RAM 用户** ，且具有管理员权限。
{% endstep %}

{% step %}
转到 **身份** → **用户** 在左侧导航窗格中
{% endstep %}

{% step %}

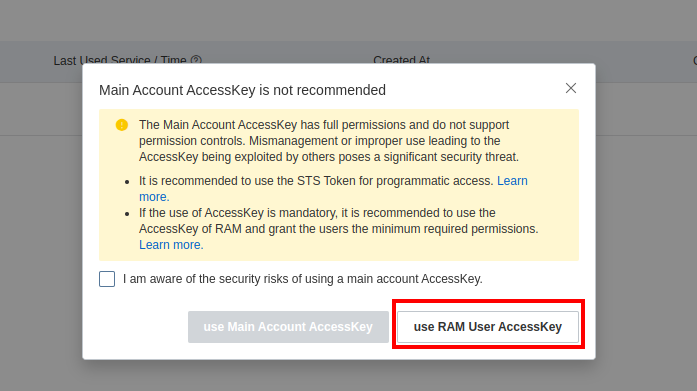

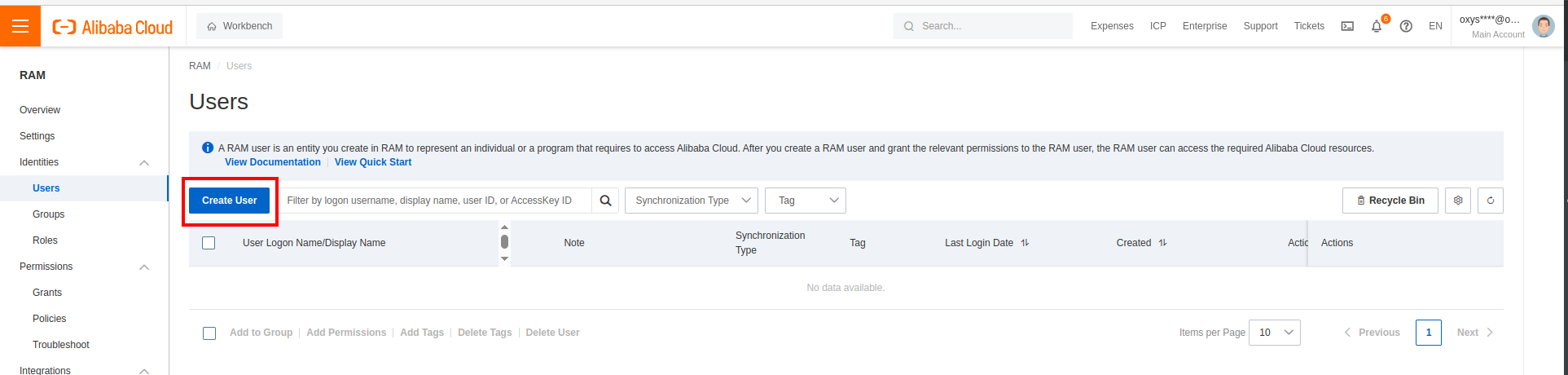

选择 **创建用户** 并使用 **RAM User AccessKey:**

<div align="left"><figure><img src="https://3714446197-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FBQ7Zf9paoN3FTeGcyfY1%2Fuploads%2Fgit-blob-e06b15f92c10028d2f5c368321821a90abf01f3f%2Fimage.png?alt=media" alt=""><figcaption></figcaption></figure></div>

<div align="left"><figure><img src="https://3714446197-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FBQ7Zf9paoN3FTeGcyfY1%2Fuploads%2Fgit-blob-4103046af7ce401cd189cd53f238fddf41b64ab5%2Fimage.png?alt=media" alt=""><figcaption></figcaption></figure></div>
{% endstep %}

{% step %}
**向 RAM 用户授予权限**

新创建的 RAM 用户没有权限。您必须向 RAM 用户授予 **AliyunOSSFullAccess** 权限。然后，RAM 用户即可访问所需的 Alibaba Cloud 资源。更多信息请参见 [向 RAM 用户授予权限](https://www.alibabacloud.com/help/en/ram/user-guide/grant-permissions-to-the-ram-user#task-187800).

<div align="left"><figure><img src="https://3714446197-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FBQ7Zf9paoN3FTeGcyfY1%2Fuploads%2Fgit-blob-6d76a9af42bd9f8eaabdbee6c4baadd5824a0a09%2Fimage.png?alt=media" alt=""><figcaption></figcaption></figure></div>
{% endstep %}

{% step %}

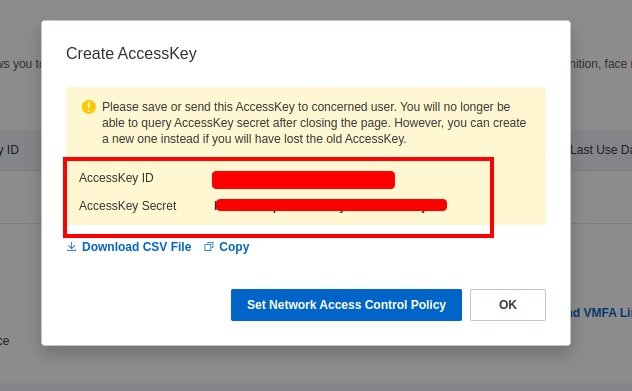

获取您的 **AccessKey ID** 和 **AccessKey Secret**

授予权限后，返回到 **身份验证** 部分，并在 **Access Key** 部分中，选择 **创建 AccessKey**。选择为 **第三方服务**创建 Access Key。然后，您会看到一个 `ACCESS_KEY_ID` 和 `ACCESS_KEY_SECRET`，随后可在请求中使用它。
{% endstep %}
{% endstepper %}

### Alibaba OSS 速率限制 <a href="#alibaba-oss-ratelimits" id="alibaba-oss-ratelimits"></a>

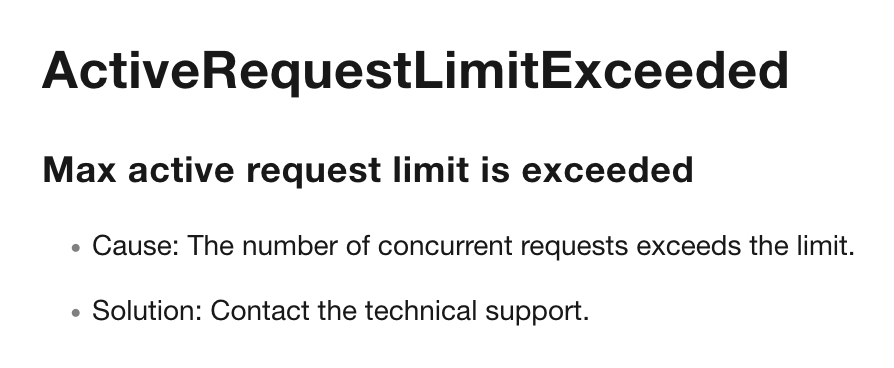

当并发上传到 Alibaba OSS 时，可能会触及其账户/存储桶速率限制，上传将开始因以下错误而超时：

<div align="left"><figure><img src="https://3714446197-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FBQ7Zf9paoN3FTeGcyfY1%2Fuploads%2Fgit-blob-8c6734c7968642444e43843fb1f200f0ab739c81%2Fimage.png?alt=media" alt="" width="563"><figcaption></figcaption></figure></div>

在这种情况下，请联系 Alibaba OSS 支持以提高您的 OSS 速率限制。

## BytePlus TOS

您可以直接将抓取结果上传到 BytePlus Torch Object Storage (TOS) 存储桶。

成功连接需要：

* 配置正确的 TOS 存储桶。
* 您的 access key 和 secret key。
* 兼容 S3 的端点。

您可以在官方 BytePlus 的 [文档](https://docs.byteplus.com/en/docs/tos/docs-region-and-endpoint).

### 示例

下面的载荷将抓取 `https://example.com` 并将结果上传到您的 TOS 存储桶。

```json
{
    "source": "universal",
    "url": "https://example.com",
    "storage_type": "tos",
    "storage_url": "https://access_key:secret_key@endpoint/bucket_name/path"
}
```

### 参数 <a href="#docs-internal-guid-dbfc45c7-7fff-9754-b71a-bacb24e2ac54" id="docs-internal-guid-dbfc45c7-7fff-9754-b71a-bacb24e2ac54"></a>

<table><thead><tr><th width="166">参数</th><th width="165">可用值</th><th>说明</th></tr></thead><tbody><tr><td><code>storage_type</code></td><td><code>tos</code></td><td>指定 BytePlus TOS 作为存储提供商。</td></tr><tr><td><code>storage_url</code></td><td>URL 字符串</td><td>用于访问您的 TOS 存储桶的已认证 URL（格式见下文）。</td></tr></tbody></table>

### 存储 URL 格式

该 `storage_url` 必须使用您的 TOS 凭证和存储桶详细信息构造。

```bash
https://access_key:secret_key@endpoint/bucket_name/path
```

| 组件            | 说明                                             |
| ------------- | ---------------------------------------------- |
| `access_key`  | 您的 BytePlus access key ID。                     |
| `secret_key`  | 您的 BytePlus secret access key。                 |
| `endpoint`    | 特定区域的端点（例如， `tos-cn-hongkong.bytepluses.com`). |
| `bucket_name` | 目标存储桶名称。                                       |
| `path`        | *（可选）* 存储桶的特定文件夹路径。                            |

{% hint style="warning" %}
如果您的 Access Key 或 Secret Key 包含特殊字符（例如 `/`, `+`，或 `=`），则它们 **必须进行 URL 编码** 后再构造字符串。
{% endhint %}

### 输出文件命名

Oxylabs 会根据作业详情自动为上传的对象生成文件名：

* **HTML/内容：** `{query_id}_{timestamp}.html`
* **解析后的数据：** `{query_id}_results.json`

文件可在您的存储桶中的以下位置访问： `tos://{bucket_name}/{path}/{filename}`

## 其他兼容 S3 的存储

如果您希望将结果交付到兼容 S3 的存储位置，则需要在您的存储桶 `ACCESS_KEY:SECRET` 认证字符串中包含 `storage_url` 值：

```json
{
    "source": "universal",
    "url": "https://example.com",
    "storage_type": "s3_compatible",
    "storage_url": "https://ACCESS_KEY:SECRET@s3.oxylabs.io/my-videos"
}
```


---
