# SessionBox
[**SessionBox**](https://sessionbox.io/discover) extension allows you to securely and anonymously manage unlimited active web browsing sessions.
This guide will showcase how to set up the following Oxylabs proxies with the [**SessionBox extension**](#sessionbox-extension) and [**Workstation**](#sessionbox-workstation):
* **Residential & Mobile Proxies**
* **Datacenter Proxies**
* **Dedicated Datacenter Proxies (Enterprise)**
* **Dedicated Datacenter Proxies (Self-service)**
* **ISP Proxies**
* **Dedicated ISP Proxies**
## SessionBox extension
### **Step 1**
[**Download**](https://chrome.google.com/webstore/detail/sessionbox-multi-login-to/megbklhjamjbcafknkgmokldgolkdfig) the **SessionBox extension** for Chrome or Opera. For Firefox, visit the [**official website**](https://sessionbox.io/discover) and click **Install** in the top-right corner.
### **Step 2**
Open the add-on, create a new account or log in, or continue without it.
### **Step 3**

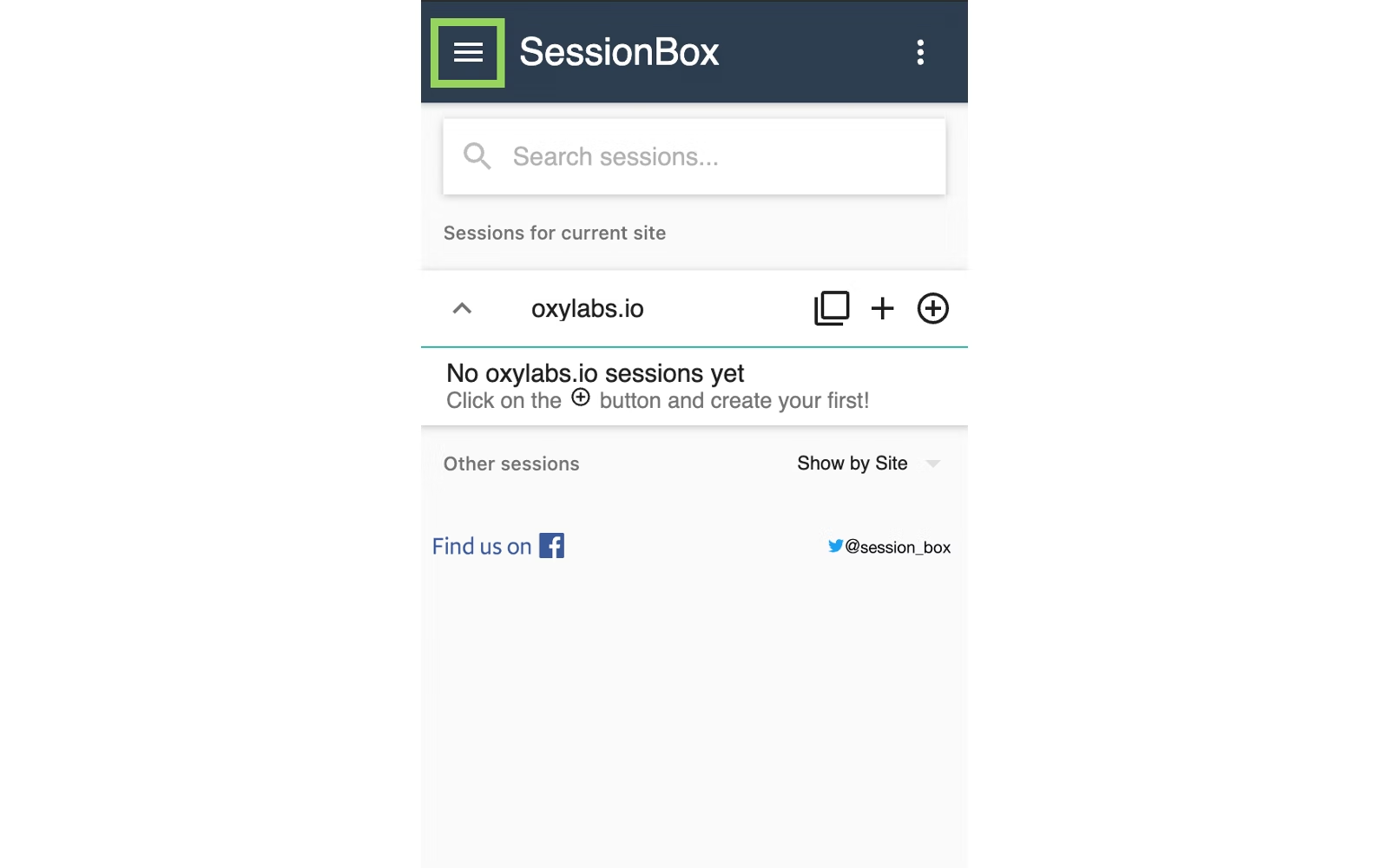

Click the **three horizontal lines** to open a menu, and click **Settings**.
### **Step 4**

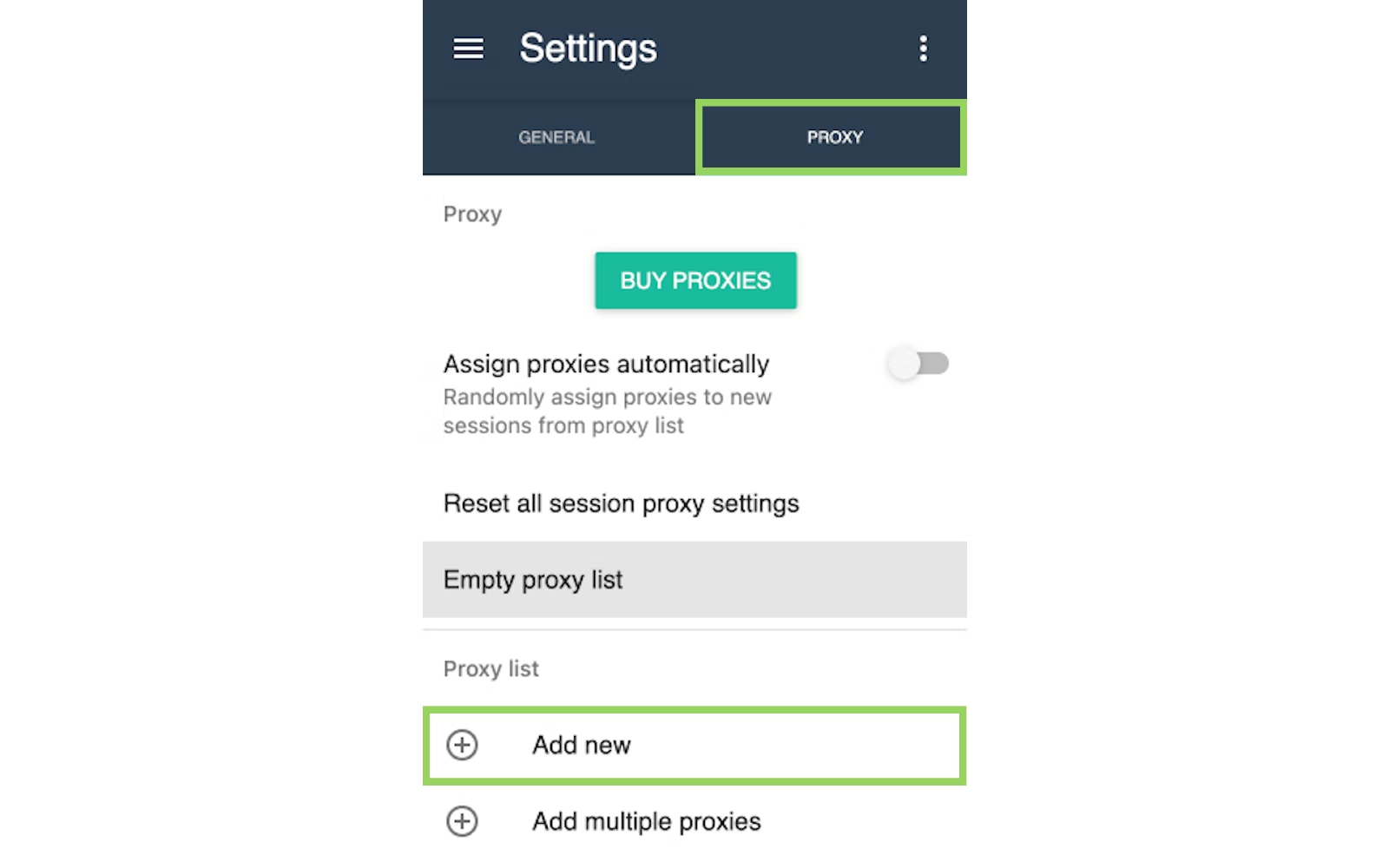

Navigate to the **Proxy** tab and click **Add New** to create a profile.
### **Step 5**
Name your profile and enter the details of your chosen proxy type:
* [Residential & Mobile Proxies](#residential-and-mobile-proxies)
* [Datacenter Proxies](#datacenter-proxies)
* [Dedicated Datacenter Proxies (Enterprise)](#dedicated-datacenter-proxies-enterprise)
* [Dedicated Datacenter Proxies (Self-service)](#dedicated-datacenter-proxies-self-service)
* [ISP Proxies](#isp-proxies)
* [Dedicated ISP Proxies](#dedicated-isp-proxies)
#### Residential & Mobile Proxies
**Type:** `HTTP`, `HTTPS`, `SOCKS5`
**Address:** `pr.oxylabs.io`
**Port:** `7777`
You may also use **additional parameters** with residential and mobile proxies to set the geo-location (country, state, city, and etc.) and control sessions. Check out the [Residential Proxies documentation](/products/proxies/residential-proxies.md) to learn more.
#### Datacenter Proxies
**Type:** `HTTP`, `HTTPS`, `SOCKS5`
**Address:** `dc.oxylabs.io`
**Port:** `8001`
{% tabs %}
{% tab title="Pay-per-IP subscription" %}
The port is the sequential number assigned to an IP address from the [proxy list](/products/proxies/datacenter-proxies/proxy-list.md). Thus, port `8001` uses the first IP address from your list. You may also enable [proxy IP rotation](/products/proxies/datacenter-proxies/ip-control.md) by setting the port to `8000`.
Furthermore, you can specify the [geo-location](/products/proxies/datacenter-proxies/select-country.md), for example, the US, by setting the **Proxy username** to `user-USERNAME-country-US`.
{% endtab %}
{% tab title="Pay-per-traffic subscription" %}
The port `8001` picks a random IP address but stays consistent during a session. Alternatively, you can [rotate proxy IPs](/products/proxies/datacenter-proxies/ip-control.md) with each request by using port `8000`.
If you want to use a specific [geo-location](/products/proxies/datacenter-proxies/select-country.md), for example, the US, set the Proxy username to `user-USERNAME-country-US`.
{% endtab %}
{% endtabs %}
#### Dedicated Datacenter Proxies (Enterprise)
**Type:** `HTTP` or `SOCKS5`
**Address:** `1.2.3.4` (IP address from your [proxy list](/products/proxies/dedicated-datacenter-proxies/enterprise/proxy-lists.md))
**Port:** `60000` (HTTP), `1180` (SOCKS5)
For Enterprise Dedicated Datacenter Proxies (purchased via sales), you’ll have to choose an IP address from the acquired [proxy list](/products/proxies/dedicated-datacenter-proxies/enterprise/proxy-lists.md).
#### Dedicated Datacenter Proxies (Self-service)
**Type:** `HTTP`, `HTTPS`, `SOCKS5`
**Address:** `ddc.oxylabs.io`
**Port:** `8001`
For Self-Service Dedicated Datacenter Proxies (purchased via Oxylabs dashboard), the port indicates the sequential number of an IP address from the acquired [proxy list](/products/proxies/datacenter-proxies/proxy-list.md). If you want to get a different IP with each request, change the **Port** to `8000` to enable [proxy rotation](/products/proxies/dedicated-datacenter-proxies/self-service/proxy-rotation.md).
#### ISP Proxies
**Type:** `HTTP`, `HTTPS`, `SOCKS5`
**Address:** `isp.oxylabs.io`
**Port:** `8001`
ISP Proxies assign each port to a specific IP address and location. Port `8001` always uses the first IP from your [proxy list](/products/proxies/isp-proxies/proxy-list.md). Use port `8000` to enable [proxy rotation](/products/proxies/isp-proxies/proxy-rotation.md).
To get rotating IPs from a specific country's proxy pool, set the username using this format: `user-USERNAME-country-XX`, where `XX` is the country code (e.g., `US` for United States).
#### Dedicated ISP Proxies
**Type:** `HTTP`, `HTTPS`, `SOCKS5`
**Address:** `disp.oxylabs.io`
**Port:** `8001`
You will need to choose the port assigned to an IP address from the purchased [proxy list](/products/proxies/dedicated-isp-proxies/self-service/proxy-list.md), which you can find on the Oxylabs dashboard. The `8001` port will pick the first IP address from your list for all requests. Use port `8000` for automatic [proxy IP rotation](/products/proxies/dedicated-isp-proxies/self-service/proxy-rotation.md).
### **Step 6**
Scroll down the same window to enter your Oxylabs proxy user **username** and **password**, then **Save** the settings.
{% hint style="info" %}
You can create and manage your proxy users in our [**dashboard**](https://dashboard.oxylabs.io/en/)**.**
{% endhint %}
| Proxy type | Example |
| ------------------------------------------- | ------------------------------------------------------------------------------------------------------------------------ |
| Residential & Mobile proxies |
User Name:customer-USERNAME
Password:PASSWORD
|
| Datacenter proxies |
User Name:user-USERNAME
Password:PASSWORD
|
| Dedicated Datacenter proxies (Enterprise) |
User Name:USERNAME
Password:PASSWORD
|
| Dedicated Datacenter proxies (Self-service) |
User Name:user-USERNAME
Password:PASSWORD
|
| ISP proxies |
User Name:user-USERNAME
Password:PASSWORD
|
| Dedicated ISP proxies |
User Name:user-USERNAME
Password:PASSWORD
|
{% hint style="warning" %}
Make sure to add the `customer-` or `user-` prefix to your username if your proxy type requires it.
{% endhint %}
### **Step 7**

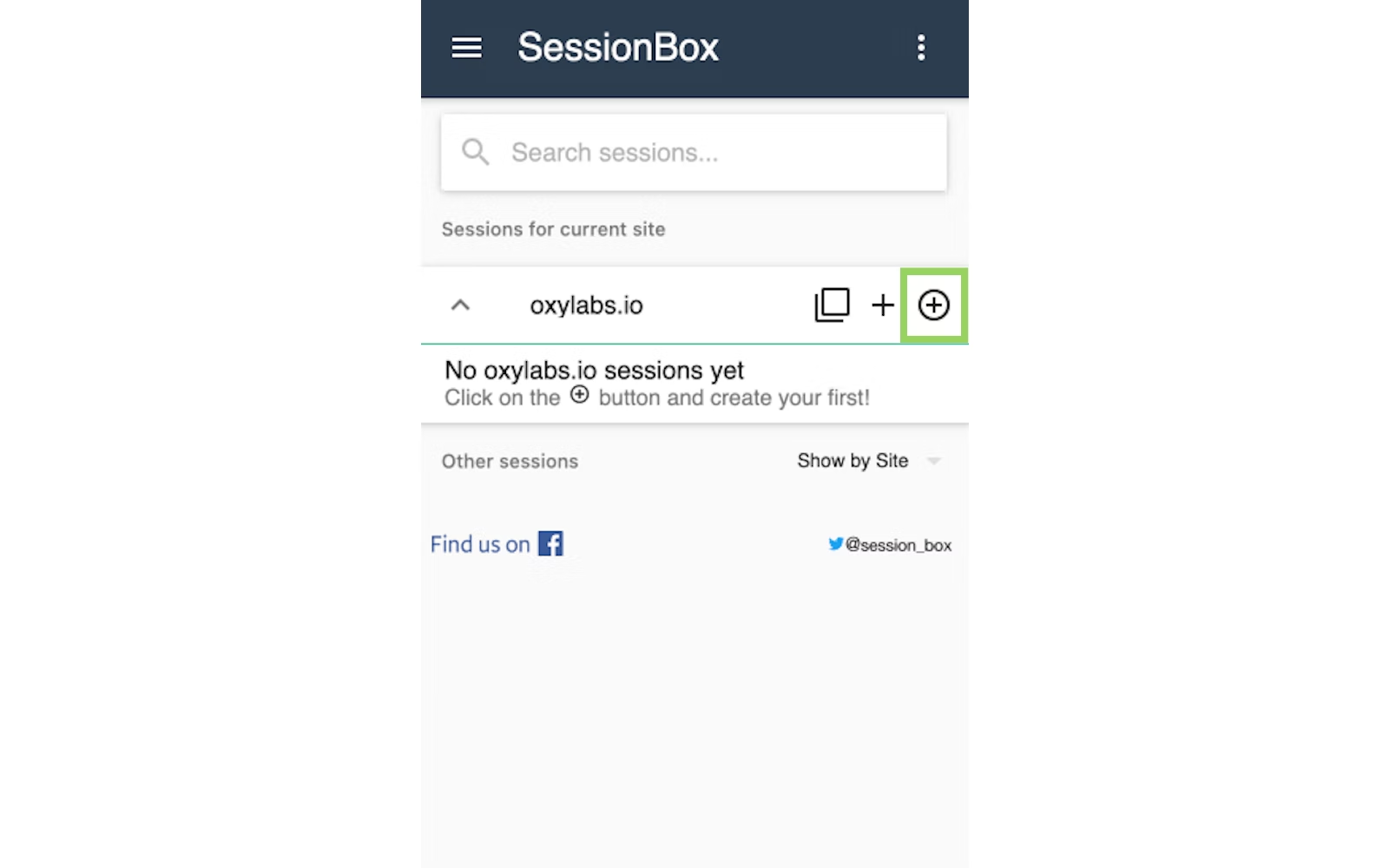

Once you add the proxy, you must assign it to a new session. Visit any website and open the add-on again. Click the **New Stored Session** button.
### **Step 8**

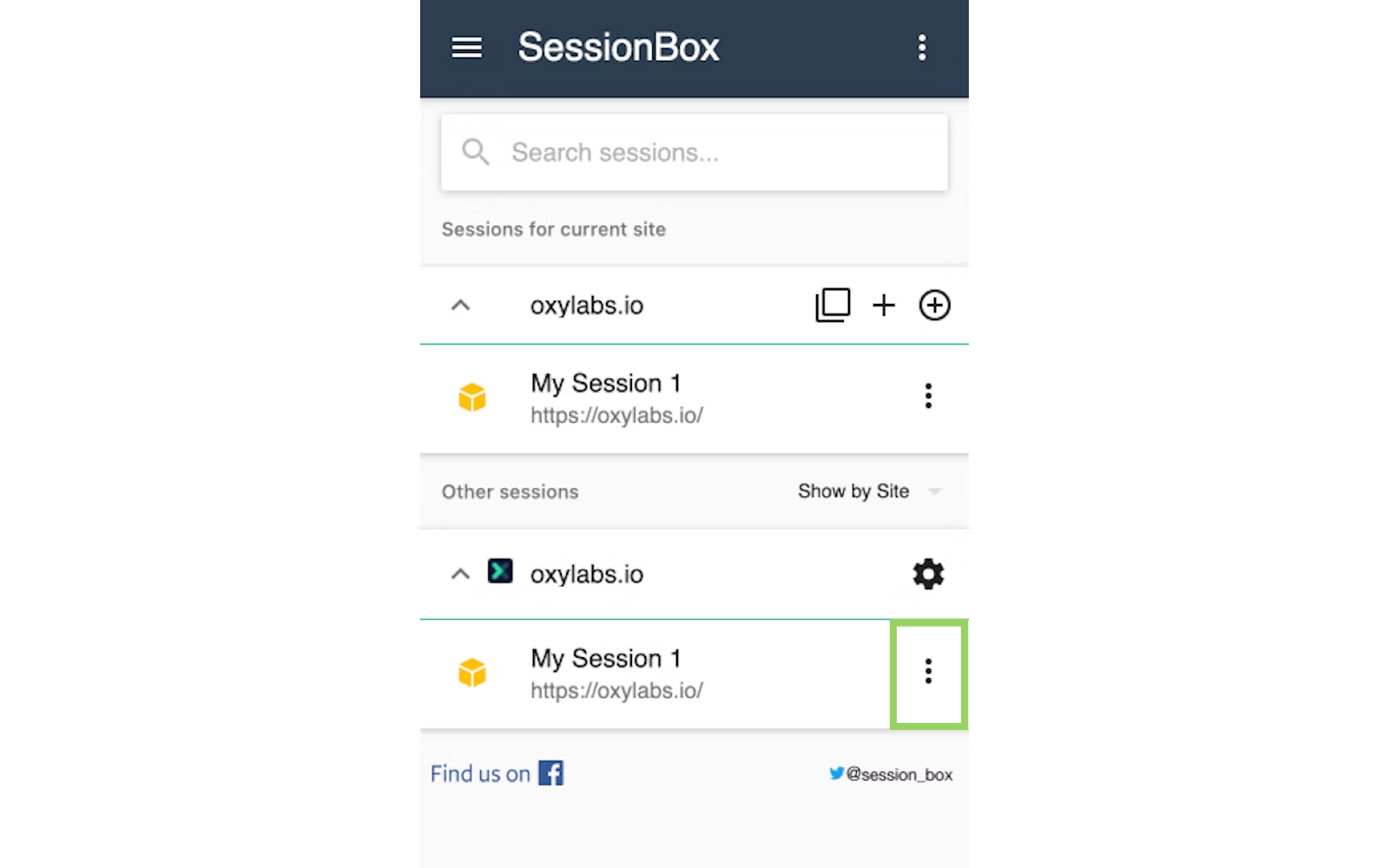

A new tab will open. Navigate to the add-on again, click **the three dots** next to your new session, and select **Settings.**
### **Step 9**

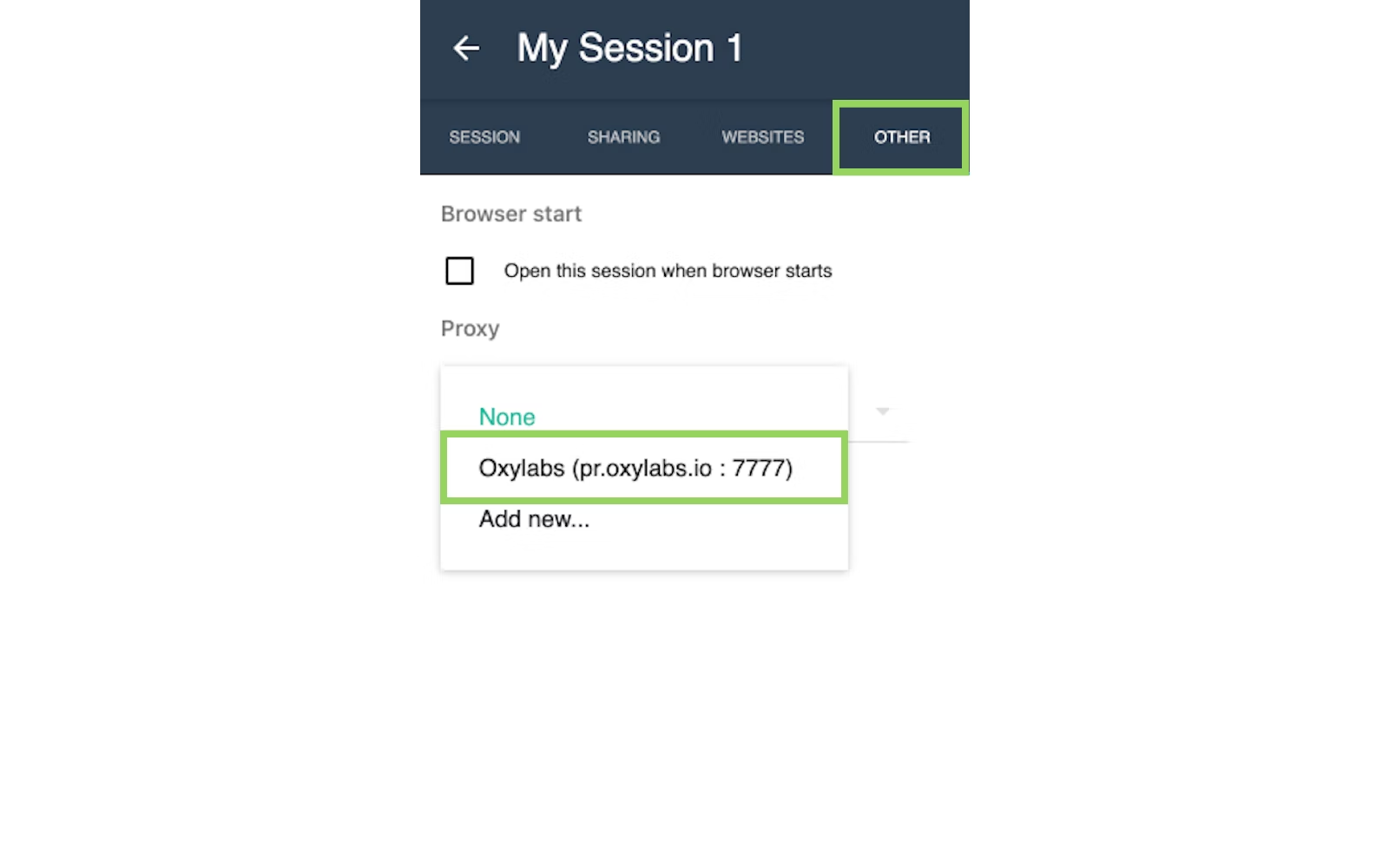

Go to the **Other** tab and select your created profile under the **Proxy** section.
That’s all! You have set up Oxylabs Residential Proxies with SessionBox extension,
## SessionBox workstation
### **Step 1**
Visit the [**official product page**](https://sessionbox.io/products/workstation)**,** click **Install** in the top-right corner, download the setup and install it. Use your login details to log in or create a new account.
### **Step 2**

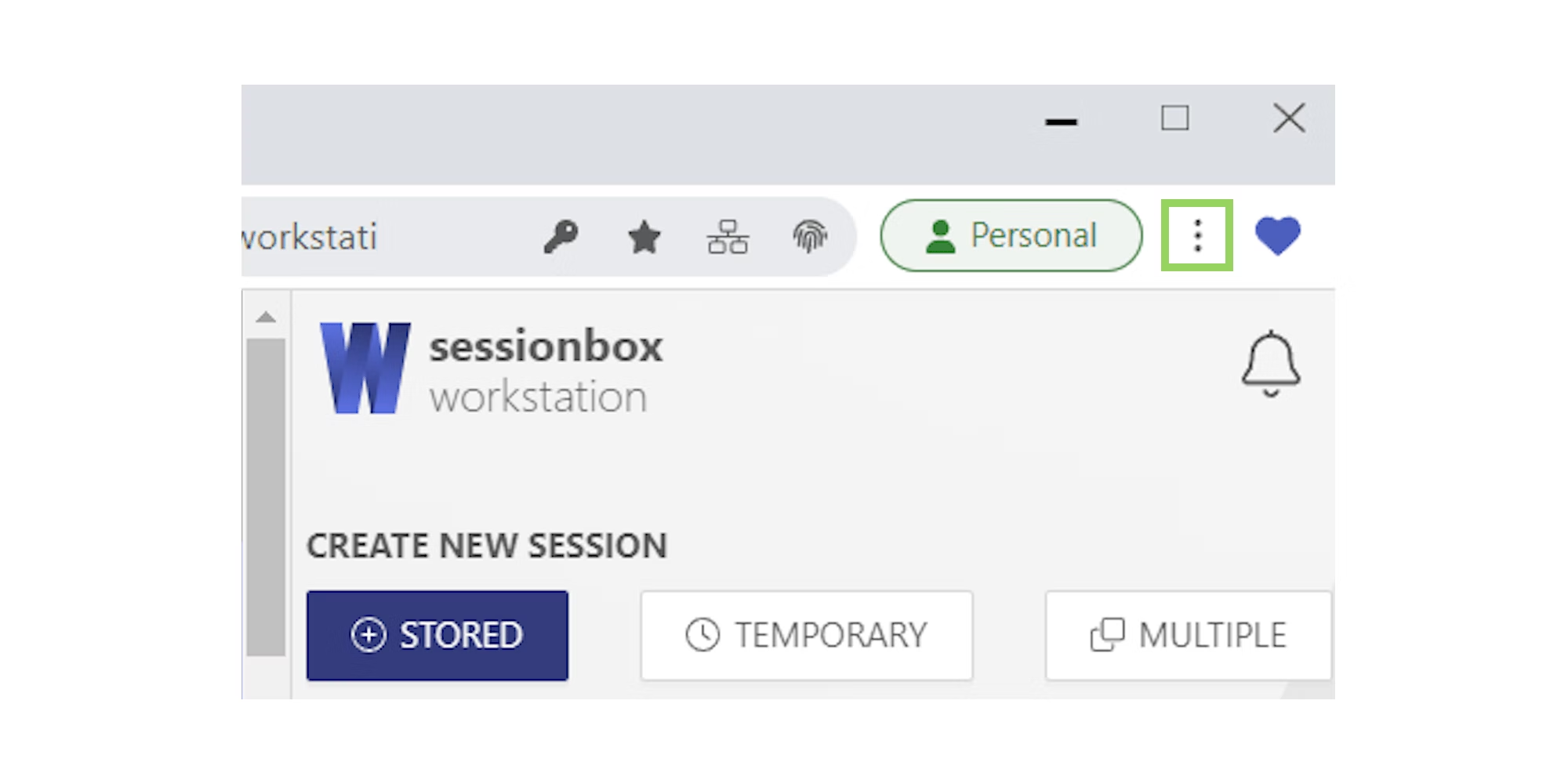

Once logged in, click the **three dots** in the top-right corner.
### **Step 3**

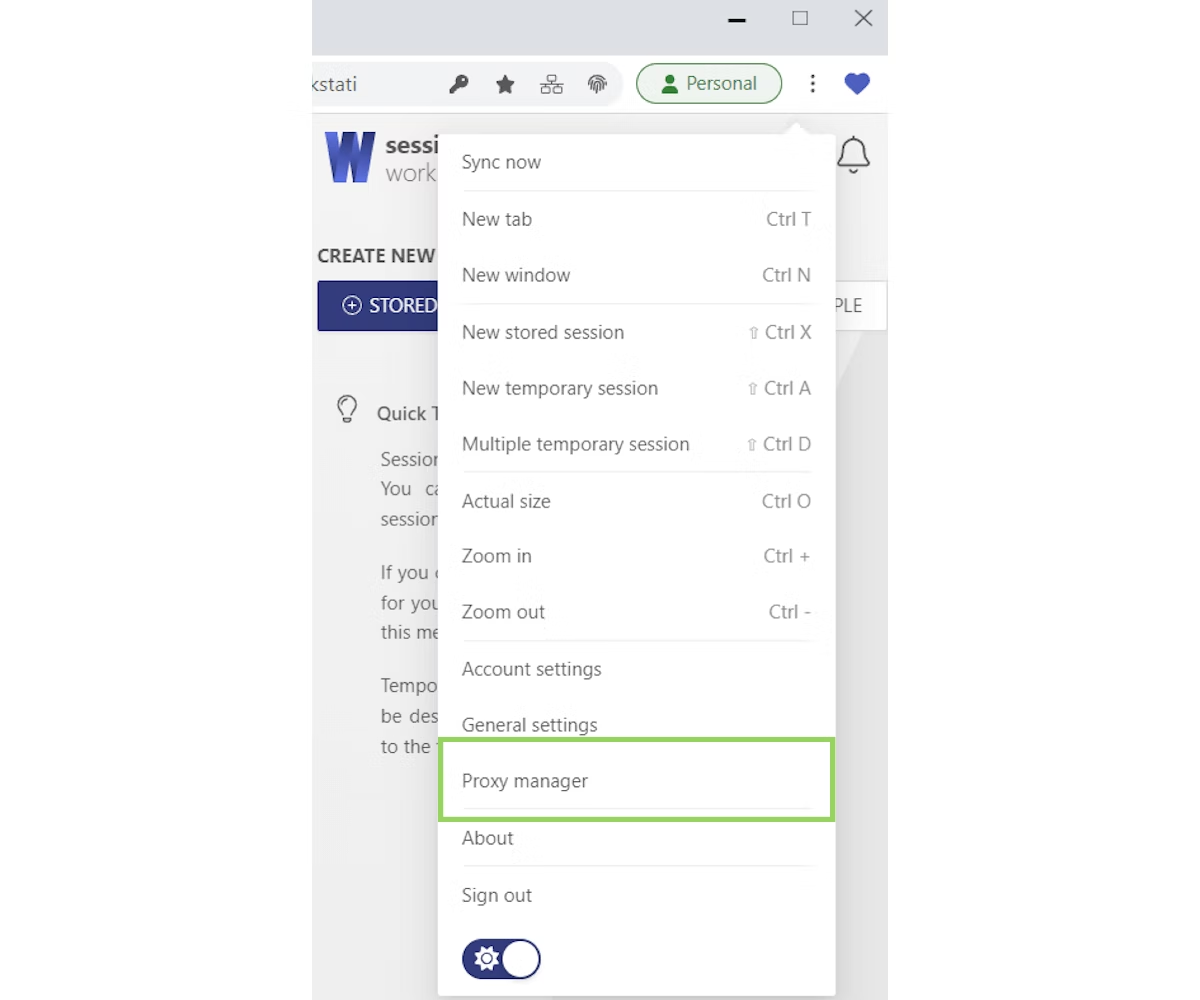

Click **Proxy Manager**.
### **Step 4**

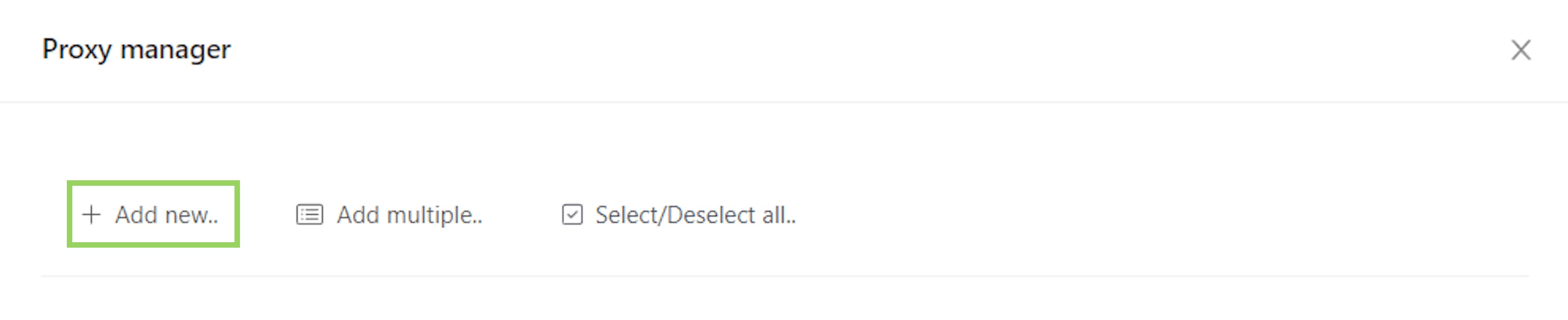

Click **Add New.**
### **Step 5**

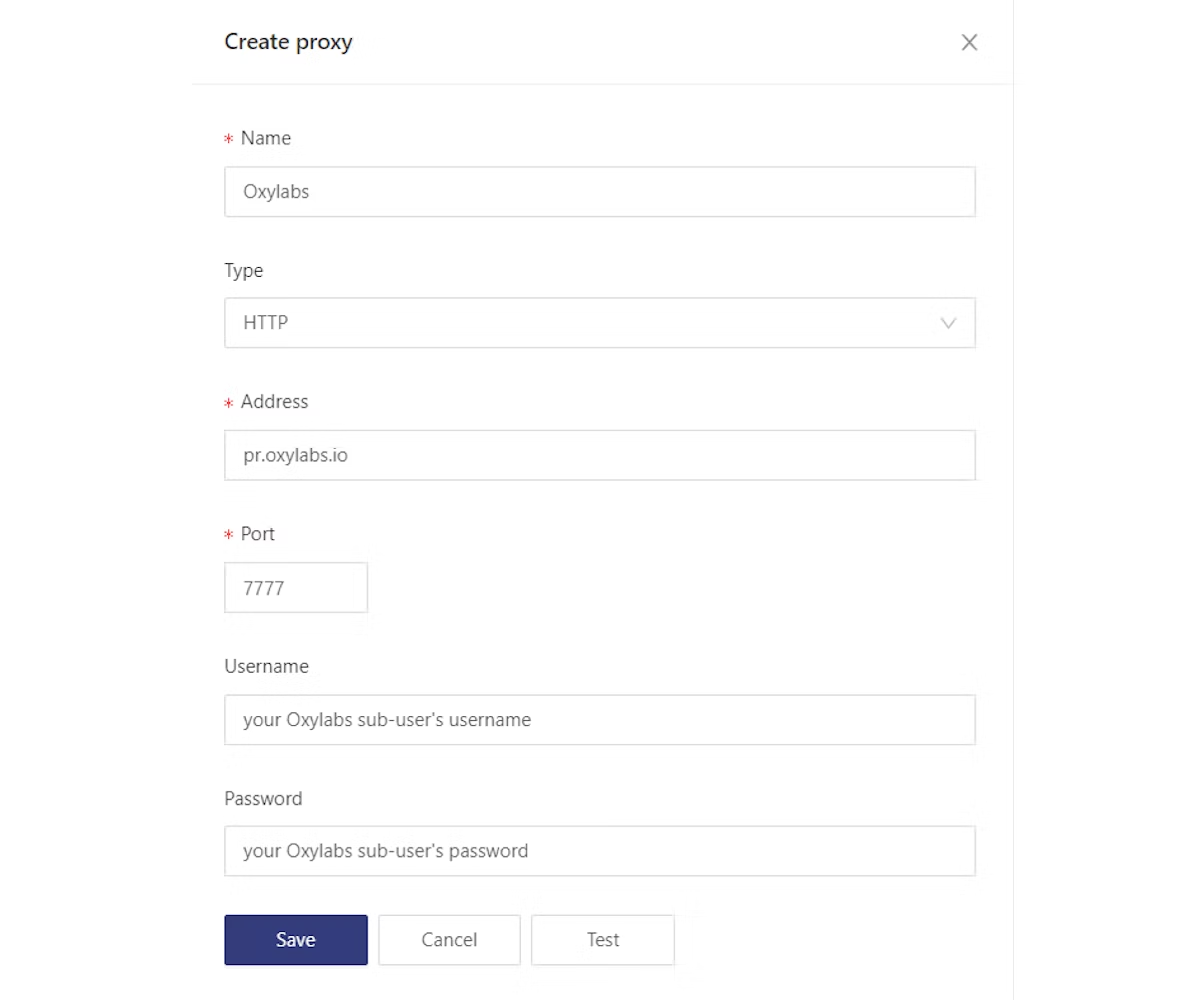

**Name** your profile, choose the appropriate connection **Type**, and add the following information according to your chosen proxy type and finish clicking **Save**:
* [**Residential & Mobile Proxies**](#residential-and-mobile-proxies-1)
* [**Datacenter Proxies**](#datacenter-proxies-1)
* [**Dedicated Datacenter Proxies (Enterprise)**](#dedicated-datacenter-proxies-enterprise-1)
* [**Dedicated Datacenter Proxies (Self-service)**](#dedicated-datacenter-proxies-self-service-1)
* [**ISP Proxies**](#isp-proxies-1)
* [**Dedicated ISP Proxies**](#dedicated-isp-proxies-1)
#### Residential & Mobile Proxies
**Type:** `HTTP`, `HTTPS`, `SOCKS5`
**Address:** `pr.oxylabs.io`
**Port:** `7777`
**Username:** `customer-USERNAME`
**Password:** `PASSWORD`
{% hint style="warning" %}
Make sure to use `customer-` prefix with your username.
{% endhint %}
You may also use **additional parameters** with residential and mobile proxies to set the geo-location (country, state, city, and etc.) and control sessions. Check out the [Residential Proxies documentation](/products/proxies/residential-proxies.md) to learn more.
#### Datacenter Proxies
**Type:** `HTTP`, `HTTPS`, `SOCKS5`
**Address:** `dc.oxylabs.io`
**Port:** `8001`
**Username:** `user-USERNAME`
**Password:** `PASSWORD`
{% hint style="warning" %}
Make sure to use `user-` prefix with your username.
{% endhint %}
{% tabs %}
{% tab title="Pay-per-IP subscription" %}
The port is the sequential number assigned to an IP address from the [proxy list](/products/proxies/datacenter-proxies/proxy-list.md). Thus, port `8001` uses the first IP address from your list. You may also enable [proxy IP rotation](/products/proxies/datacenter-proxies/ip-control.md) by setting the port to `8000`.
Furthermore, you can specify the [geo-location](/products/proxies/datacenter-proxies/select-country.md), for example, the US, by setting the **Proxy username** to `user-USERNAME-country-US`.
{% endtab %}
{% tab title="Pay-per-traffic subscription" %}
The port `8001` picks a random IP address but stays consistent during a session. Alternatively, you can [rotate proxy IPs](/products/proxies/datacenter-proxies/ip-control.md) with each request by using port `8000`.
If you want to use a specific [geo-location](/products/proxies/datacenter-proxies/select-country.md), for example, the US, set the Proxy username to `user-USERNAME-country-US`.
{% endtab %}
{% endtabs %}
#### Dedicated Datacenter Proxies (Enterprise)
**Type:** `HTTP` or `SOCKS5`
**Address:** `1.2.3.4` (IP address from your [proxy list](/products/proxies/dedicated-datacenter-proxies/enterprise/proxy-lists.md))
**Port:** `60000` (HTTP), `1180` (SOCKS5)
**Username:** `USERNAME`
**Password:** `PASSWORD`
For Enterprise Dedicated Datacenter Proxies (purchased via sales), you’ll have to choose an IP address from the acquired [proxy list](/products/proxies/dedicated-datacenter-proxies/enterprise/proxy-lists.md).
#### Dedicated Datacenter Proxies (Self-service)
**Type:** `HTTP`, `HTTPS`, `SOCKS5`
**Address:** `ddc.oxylabs.io`
**Port:** `8001`
**Username:** `user-USERNAME`
**Password:** `PASSWORD`
{% hint style="warning" %}
Make sure to use `user-` prefix with your username.
{% endhint %}
For Self-Service Dedicated Datacenter Proxies (purchased via Oxylabs dashboard), the port indicates the sequential number of an IP address from the acquired [proxy list](/products/proxies/datacenter-proxies/proxy-list.md). If you want to get a different IP with each request, change the **Port** to `8000` to enable [proxy rotation](/products/proxies/dedicated-datacenter-proxies/self-service/proxy-rotation.md).
#### ISP Proxies
**Type:** `HTTP`, `HTTPS`, `SOCKS5`
**Address:** `isp.oxylabs.io`
**Port:** `8001`
**Username:** `user-USERNAME`
**Password:** `PASSWORD`
{% hint style="warning" %}
Make sure to use `user-` prefix with your username.
{% endhint %}
ISP Proxies assign each port to a specific IP address and location. Port `8001` always uses the first IP from your [proxy list](/products/proxies/isp-proxies/proxy-list.md). Use port `8000` to enable [proxy rotation](/products/proxies/isp-proxies/proxy-rotation.md).
To get rotating IPs from a specific country's proxy pool, set the username using this format: `user-USERNAME-country-XX`, where `XX` is the country code (e.g., `US` for United States).
#### Dedicated ISP Proxies
**Type:** `HTTP`, `HTTPS`, `SOCKS5`
**Address:** `disp.oxylabs.io`
**Port:** `8001`
**Username:** `user-USERNAME`
**Password:** `PASSWORD`
{% hint style="warning" %}
Make sure to use `user-` prefix with your username.
{% endhint %}
You will need to choose the port assigned to an IP address from the purchased [proxy list](/products/proxies/dedicated-isp-proxies/self-service/proxy-list.md), which you can find on the Oxylabs dashboard. The `8001` port will pick the first IP address from your list for all requests. Use port `8000` for automatic [proxy IP rotation](/products/proxies/dedicated-isp-proxies/self-service/proxy-rotation.md).
### **Step 6**

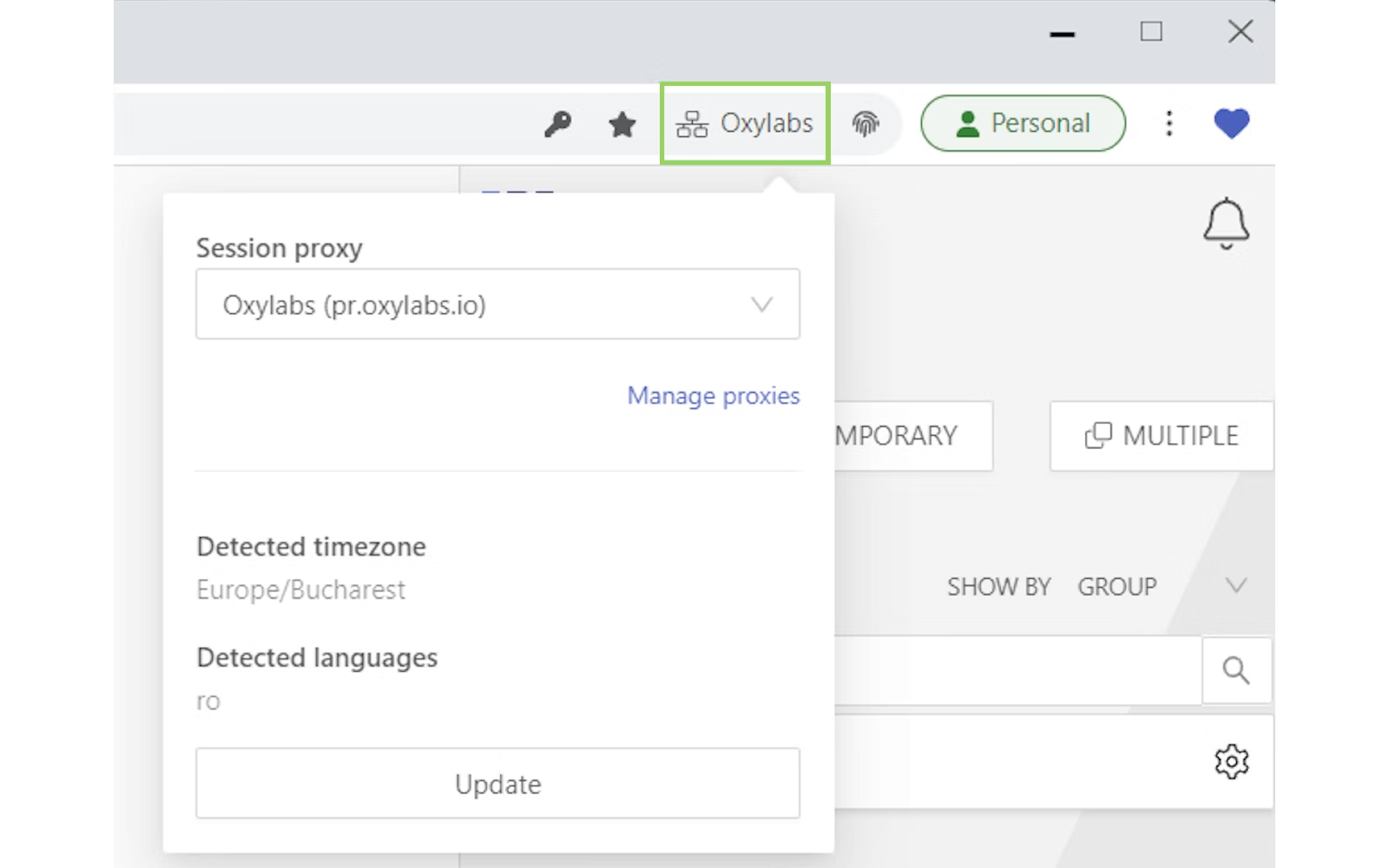

Check which country your session is connected to by clicking the **Name** of your proxy profile found on the right side of the search bar.
### **Step 7**

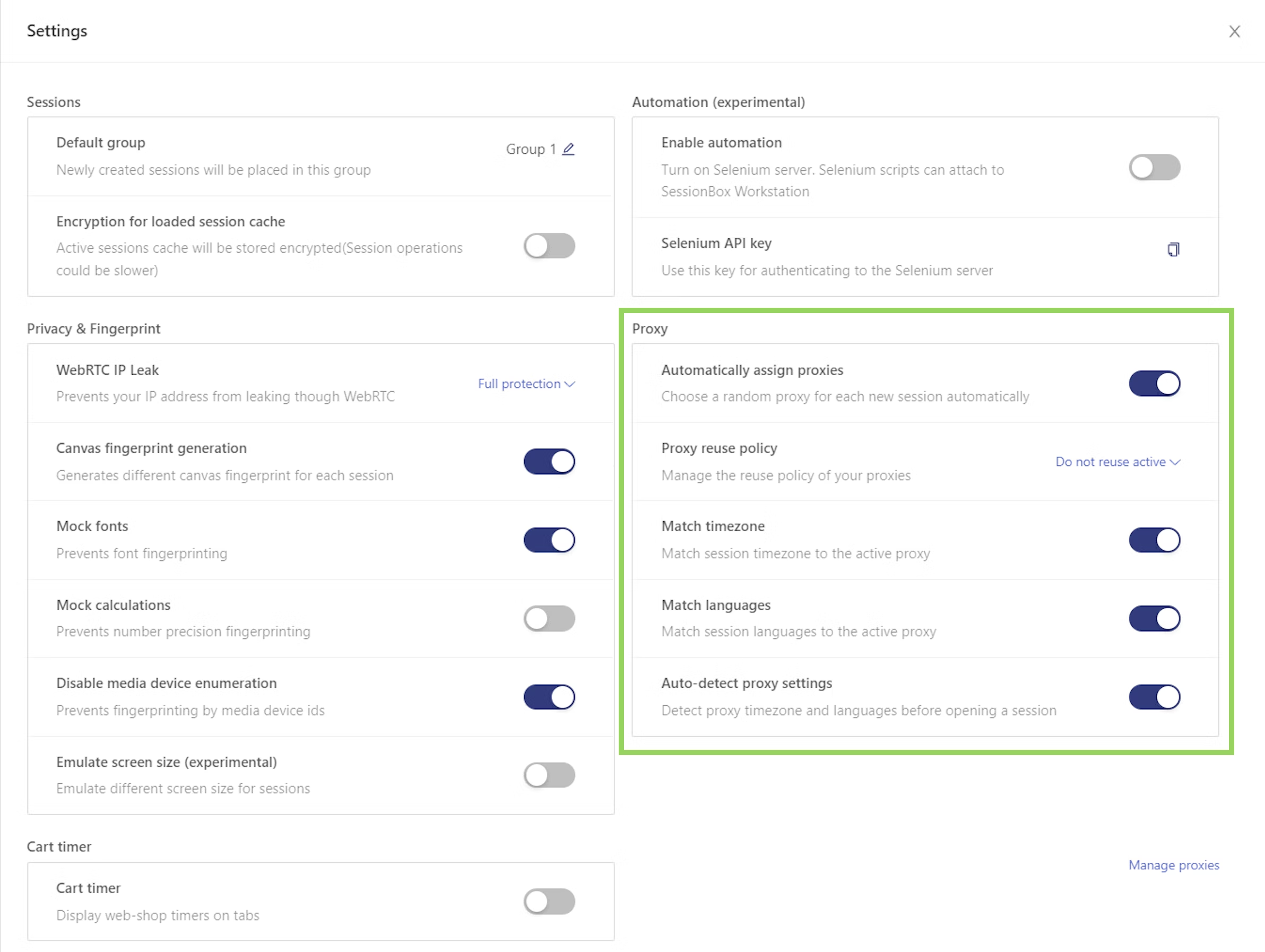

To access additional proxy settings, click on the **three dots** and select **General Settings**. A new window will appear, allowing you to adjust the use according to your needs.
That's it! You have successfully integrated Oxylabs proxies with SessionBox workstation.
---
