# Octoparse

将 Octoparse 与 Oxylabs 代理集成，用于无代码网页爬取。设置自动 IP 轮换并处理常见爬取挑战。

[**Octoparse**](https://www.octoparse.com/) 是一款数据提取工具。它允许你无需编写代码即可抓取公开数据，并通过自动 IP 轮换和延长会话时间来应对大多数抓取挑战。

按照以下步骤将 Octoparse 与以下 Oxylabs 代理集成：

* [**住宅与移动代理**](#residential-and-mobile-proxies)
* [**数据中心代理**](#datacenter-proxies)
* [**独享数据中心代理（企业版）**](#dedicated-datacenter-proxies-enterprise)
* [**独享数据中心代理（自助服务版）**](#dedicated-datacenter-proxies-self-service)
* [**ISP代理**](#isp-proxies)
* [**独享ISP代理**](#dedicated-isp-proxies)

### **步骤 1**

[**下载**](https://www.octoparse.com/download/mac)、安装，然后打开 Octoparse。

### **步骤 2**

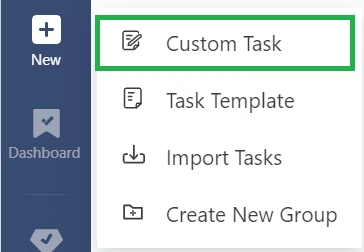

通过点击 **+New** 按钮（位于左上角），然后选择 **自定义任务。**

<figure><img src="https://1216392379-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FU4lV7kLC2Df45W0aLQlX%2Fuploads%2Fgit-blob-bda3d68a84769536228e8e0ef0b4d699345190e4%2Fimage.png?alt=media" alt=""><figcaption></figcaption></figure>

### **步骤 3**

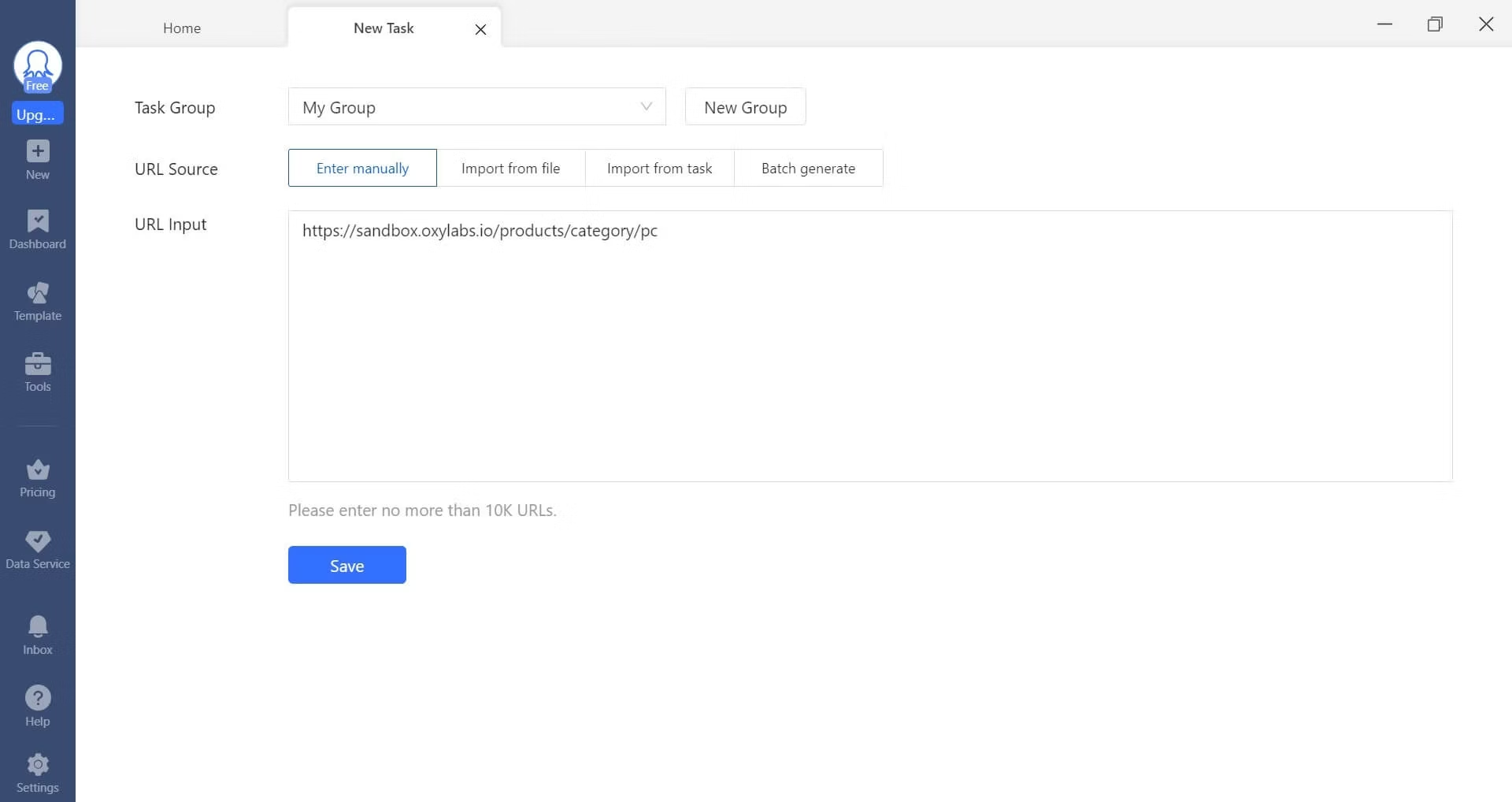

在 **URL 输入框** 中输入你要提取数据的网页 URL，然后点击 **保存** 按钮。我们将以 [**Oxylabs 抓取沙盒**](https://sandbox.oxylabs.io/products/category/pc) 为例。

<figure><img src="https://1216392379-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FU4lV7kLC2Df45W0aLQlX%2Fuploads%2Fgit-blob-94a23b5471c974ec0f619093cf613656c700a768%2Fimage.png?alt=media" alt=""><figcaption></figcaption></figure>

### **步骤 4**

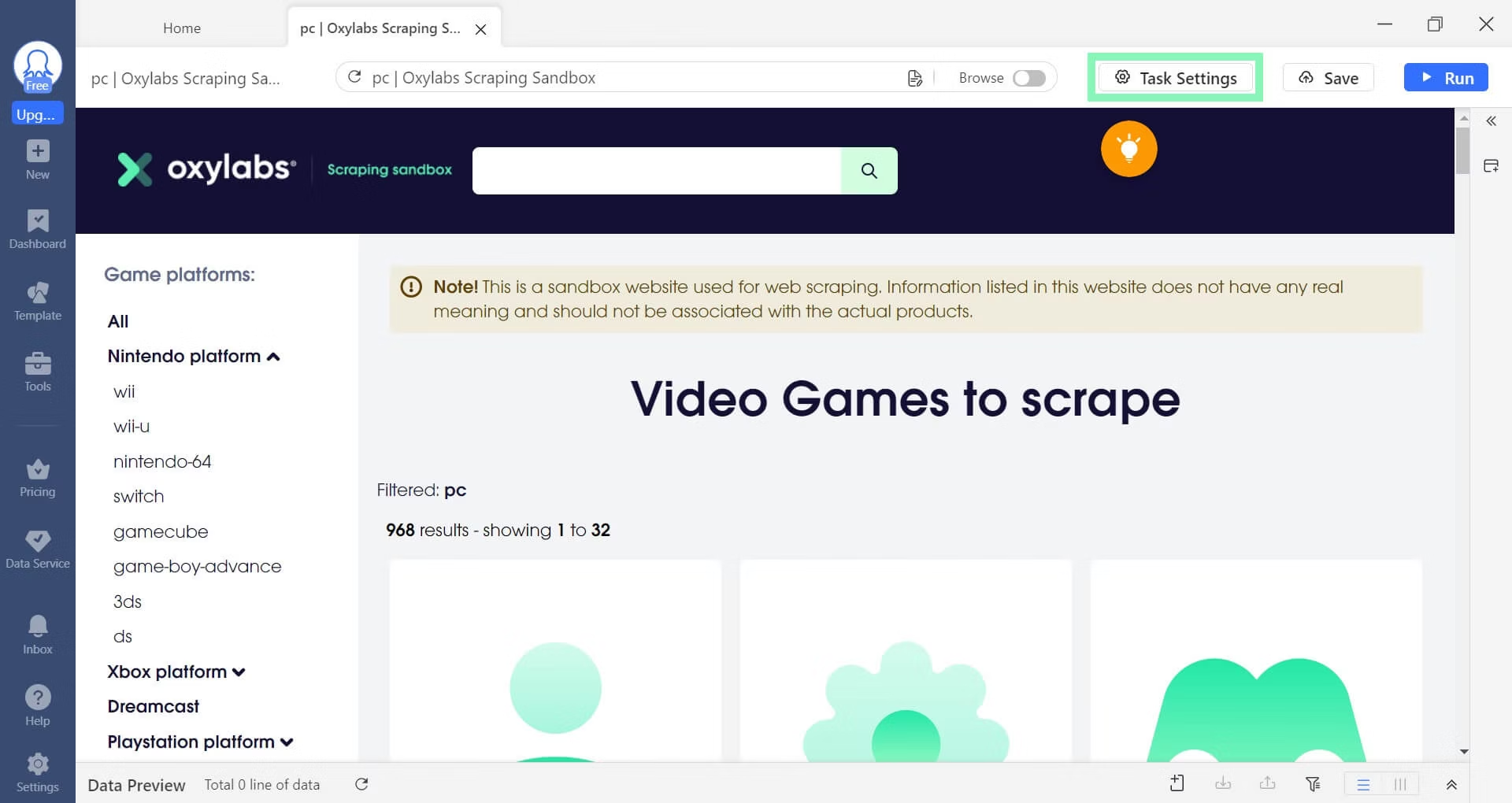

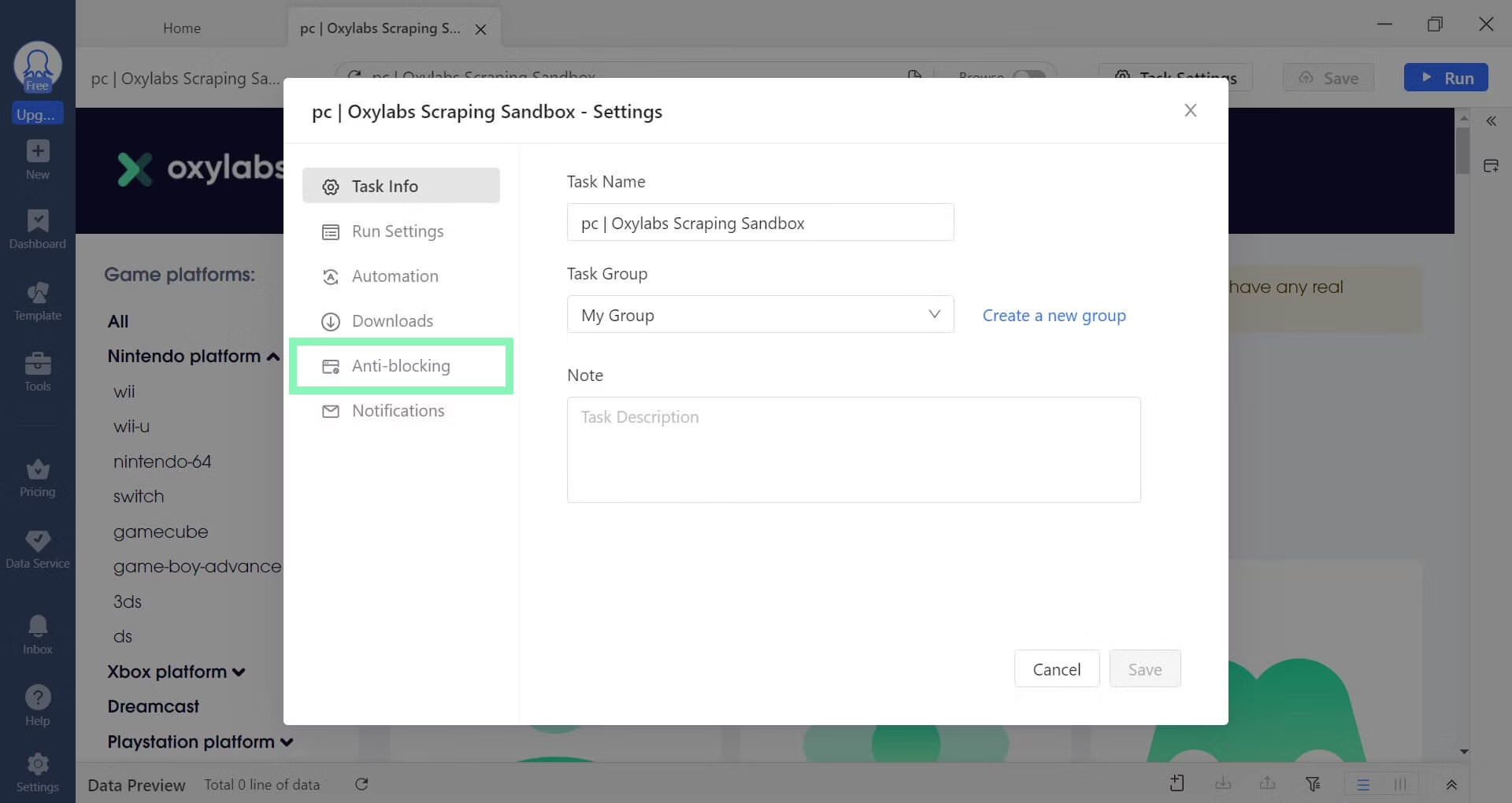

加载所选 URL 后，转到 **"任务设置"** 并选择 **"防封锁"**.

<figure><img src="https://1216392379-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FU4lV7kLC2Df45W0aLQlX%2Fuploads%2Fgit-blob-d6059fc248a4cc709adcfa800165d8af8102e1bc%2Fimage.png?alt=media" alt=""><figcaption></figcaption></figure>

<figure><img src="https://1216392379-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FU4lV7kLC2Df45W0aLQlX%2Fuploads%2Fgit-blob-4f2bdcc474717a8d429743cf335b72ab252f5571%2Fimage.png?alt=media" alt=""><figcaption></figcaption></figure>

### **步骤 5**

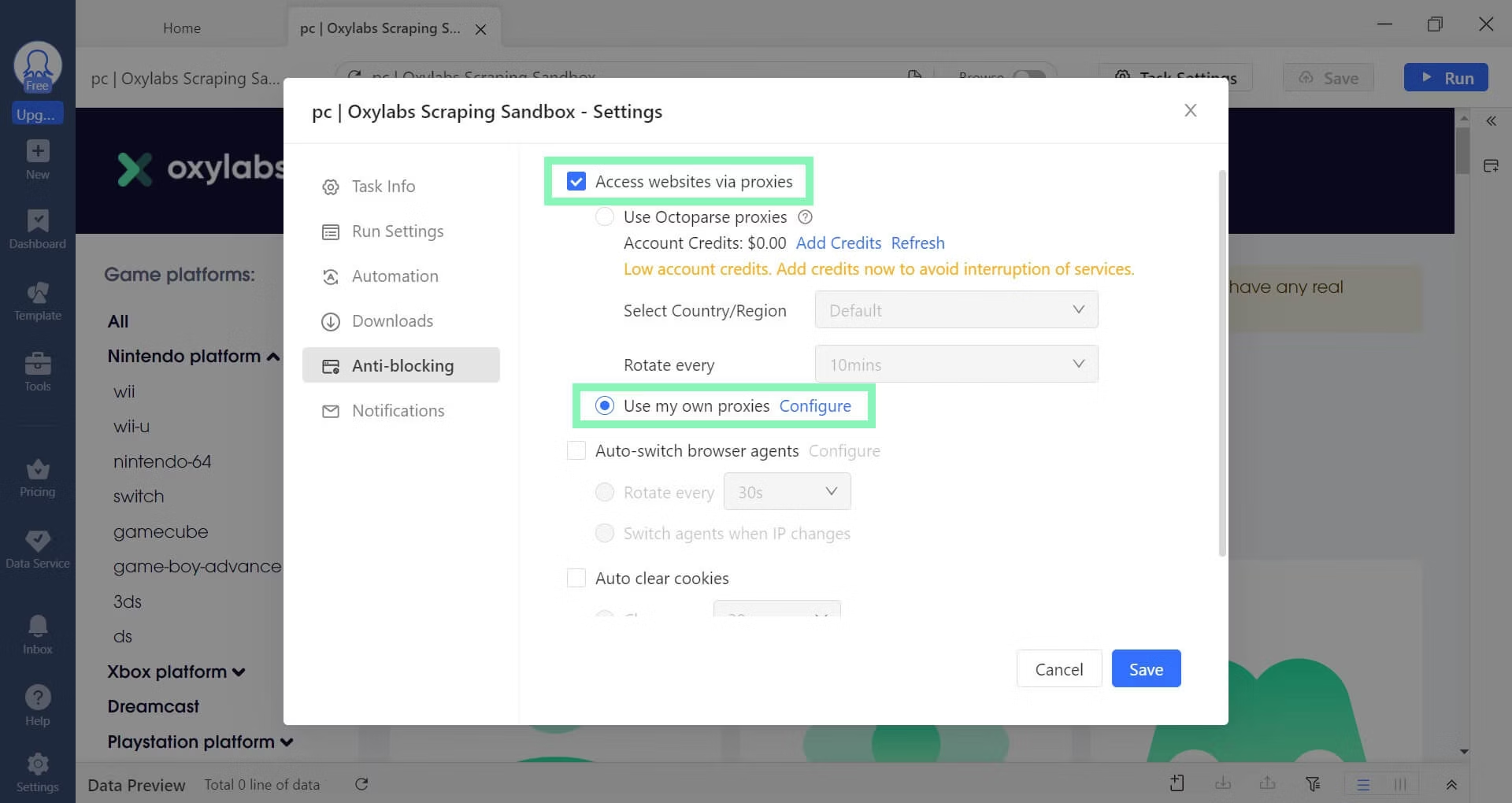

现在，勾选 **通过代理访问网站**，启用 **使用我自己的代理，** 然后点击 **配置**.

<figure><img src="https://1216392379-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FU4lV7kLC2Df45W0aLQlX%2Fuploads%2Fgit-blob-b7661b7f2386ea421cd26524bf7bf5ca2c3398d6%2Fimage.png?alt=media" alt=""><figcaption></figcaption></figure>

### **步骤 6**

当你点击 **配置** 按钮时，会弹出一个窗口。请在 `IP/host:port:username:password` 格式中指定你选择的代理详细信息：

* [住宅与移动代理](#residential-and-mobile-proxies)
* [数据中心代理](#datacenter-proxies)
* [独享数据中心代理（企业版）](#dedicated-datacenter-proxies-enterprise)
* [独享数据中心代理（自助服务版）](#dedicated-datacenter-proxies-self-service)
* [ISP代理](#isp-proxies)
* [独享ISP代理](#dedicated-isp-proxies)

#### 住宅与移动代理

**IP/host:** `pr.oxylabs.io`

**端口：** `7777`

**用户名：** `customer-username`

**密码：** `password`

{% hint style="warning" %}
别忘了添加 `customer-` 该部分到您的用户名中。
{% endhint %}

<figure><img src="https://1216392379-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FU4lV7kLC2Df45W0aLQlX%2Fuploads%2Fgit-blob-2ab7fe33e2f6ca420ea2dbf9d90f9114c8e8262f%2Fimage.png?alt=media" alt=""><figcaption></figcaption></figure>

{% hint style="info" %}
你也可以使用按国家/地区的条目，通过粘性会话获取所需国家/地区的出口节点。例如，要使用美国出口节点，请 `us-pr.oxylabs.io` 在 **Host or IP Address** 和 `10001` 在 **端口**旁边输入。你可以在我们的 [文档](https://developers.oxylabs.io/products/cn/proxies/residential-proxies/location-settings.md).
{% endhint %}

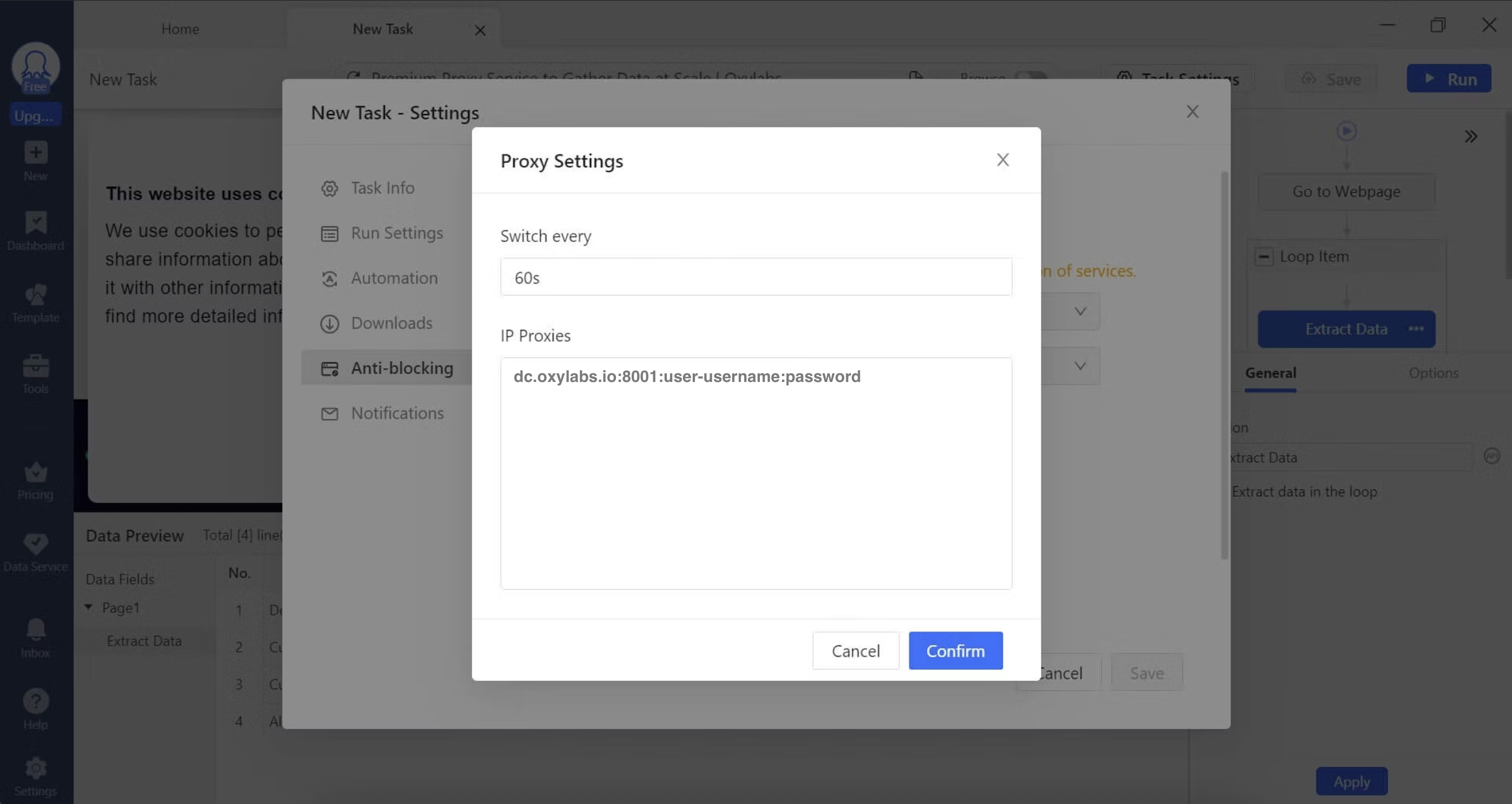

#### 数据中心代理

**IP/host:** `dc.oxylabs.io`

**端口：** `8001`

**用户名：** `user-username`

**密码：** `password`

{% hint style="info" %}
别忘了添加 `user-` 前缀添加到用户名中。
{% endhint %}

<figure><img src="https://1216392379-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FU4lV7kLC2Df45W0aLQlX%2Fuploads%2Fgit-blob-d31dac5c0197bc1f018bb3b408fb8dadbe940a5a%2Foctoparse_dc_details.png?alt=media" alt=""><figcaption></figcaption></figure>

对于 **按 IP 计费** 订阅，端口是分配给给定列表中某个 IP 地址的顺序编号。因此，端口 `8001` 使用你列表中的第一个 IP 地址。

对于 **按流量计费** 订阅，端口 `8001` 会随机选择一个 IP 地址，但在会话期间保持一致。

{% hint style="info" %}
你也可以在用户认证字符串中指定地理位置，例如美国： `user-USERNAME-country-US:PASSWORD`。参阅我们的 [文档](https://developers.oxylabs.io/products/cn/proxies/datacenter-proxies.md) 了解更多详情。
{% endhint %}

#### 独享数据中心代理（企业版）

**IP/host:** 特定 IP 地址（例如， `1.2.3.4`)

**端口：** `60000`

**用户名：** `username`

**密码：** `password`

<figure><img src="https://1216392379-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FU4lV7kLC2Df45W0aLQlX%2Fuploads%2Fgit-blob-7af2f27bb3a28768093ff7d8d5ddf5be284c07f4%2Foctoparse_ddc-e_details.png?alt=media" alt=""><figcaption></figcaption></figure>

{% hint style="info" %}
对于 Enterprise 独享数据中心代理，你需要从 [**已获取列表**](https://developers.oxylabs.io/products/cn/proxies/dedicated-datacenter-proxies/enterprise/proxy-lists.md).
{% endhint %}

#### 独享数据中心代理（自助服务版）

**IP/host:** `ddc.oxylabs.io`

**端口：** `8001`

**用户名：** `user-username`

**密码：** `password`

{% hint style="warning" %}
别忘了添加 `user-` 该部分到您的用户名中。
{% endhint %}

<figure><img src="https://1216392379-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FU4lV7kLC2Df45W0aLQlX%2Fuploads%2Fgit-blob-1f5cfc55670f481ad4df2023a200e6d0492e5625%2Foctoparse_ddc-ss_details.png?alt=media" alt=""><figcaption></figcaption></figure>

{% hint style="info" %}
你需要选择一个分配给已购买的 IP 地址的端口，来自 [**代理列表**](https://developers.oxylabs.io/products/cn/proxies/dedicated-datacenter-proxies/self-service/proxy-list.md)**,** 你可以在 Oxylabs 仪表板中找到。
{% endhint %}

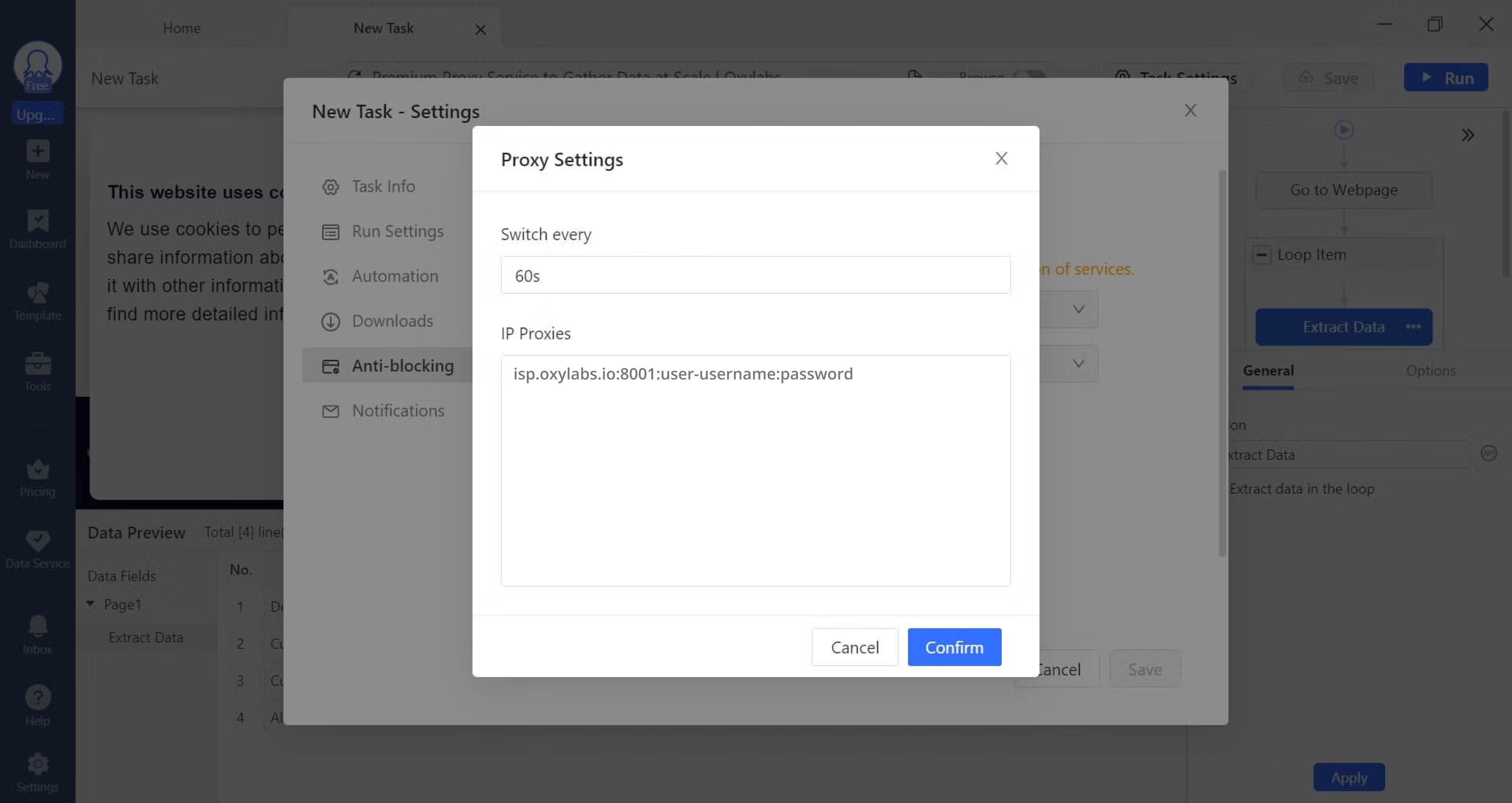

#### ISP代理

**IP/host:** `isp.oxylabs.io`

**端口：** `8001`

**用户名：** `user-username`

**密码：** `password`

{% hint style="warning" %}
别忘了添加 `user-` 该部分到您的用户名中。
{% endhint %}

<figure><img src="https://1216392379-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FU4lV7kLC2Df45W0aLQlX%2Fuploads%2Fgit-blob-7544ae0f0655359c03b83157fa2b9576cba73493%2Foctoparse_isp.png?alt=media" alt=""><figcaption></figcaption></figure>

{% hint style="info" %}
你需要选择分配给已购买的 IP 地址的端口， [**代理列表**](https://developers.oxylabs.io/products/cn/proxies/isp-proxies/proxy-list.md)**,** 你可以在 Oxylabs 仪表板中找到。该 `8001` 端口会为所有请求从你的列表中选取第一个 IP 地址。
{% endhint %}

#### 独享ISP代理

**IP/host**: `disp.oxylabs.io`

**端口**: `8001`

**用户名：** `user-USERNAME`

**密码：** `PASSWORD`

{% hint style="warning" %}
**注意：** 别忘了添加 `user-` 前缀到您的用户名中。
{% endhint %}

<figure><img src="https://1216392379-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FU4lV7kLC2Df45W0aLQlX%2Fuploads%2Fgit-blob-fb651f1c8ef9ff7a0789ae166e3d2272909f17a7%2Foctoparse-1.png?alt=media" alt=""><figcaption></figcaption></figure>

{% hint style="info" %}
端口号表示你已购买的代理中的哪个 IP 地址 [代理列表](https://developers.oxylabs.io/products/cn/proxies/dedicated-isp-proxies/self-service/proxy-list.md) 中的哪个 IP 地址。请使用端口 `8000` 用于自动 [代理 IP 轮换](https://developers.oxylabs.io/products/cn/proxies/dedicated-isp-proxies/self-service/proxy-rotation.md).
{% endhint %}

### **步骤 7**

设置 **切换** 间隔，具体取决于你使用的是轮换会话类型还是粘性会话类型。

<figure><img src="https://1216392379-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FU4lV7kLC2Df45W0aLQlX%2Fuploads%2Fgit-blob-8f3efff6cae07d1f24ce75de6d00fc6733c1de4c%2Fimage.png?alt=media" alt=""><figcaption></figcaption></figure>

### **步骤 8**

通过点击 **确认** 按钮保存更改，然后点击 **保存**.

你的代理现在已设置完成！

### 如何开始使用 Octoparse 进行抓取

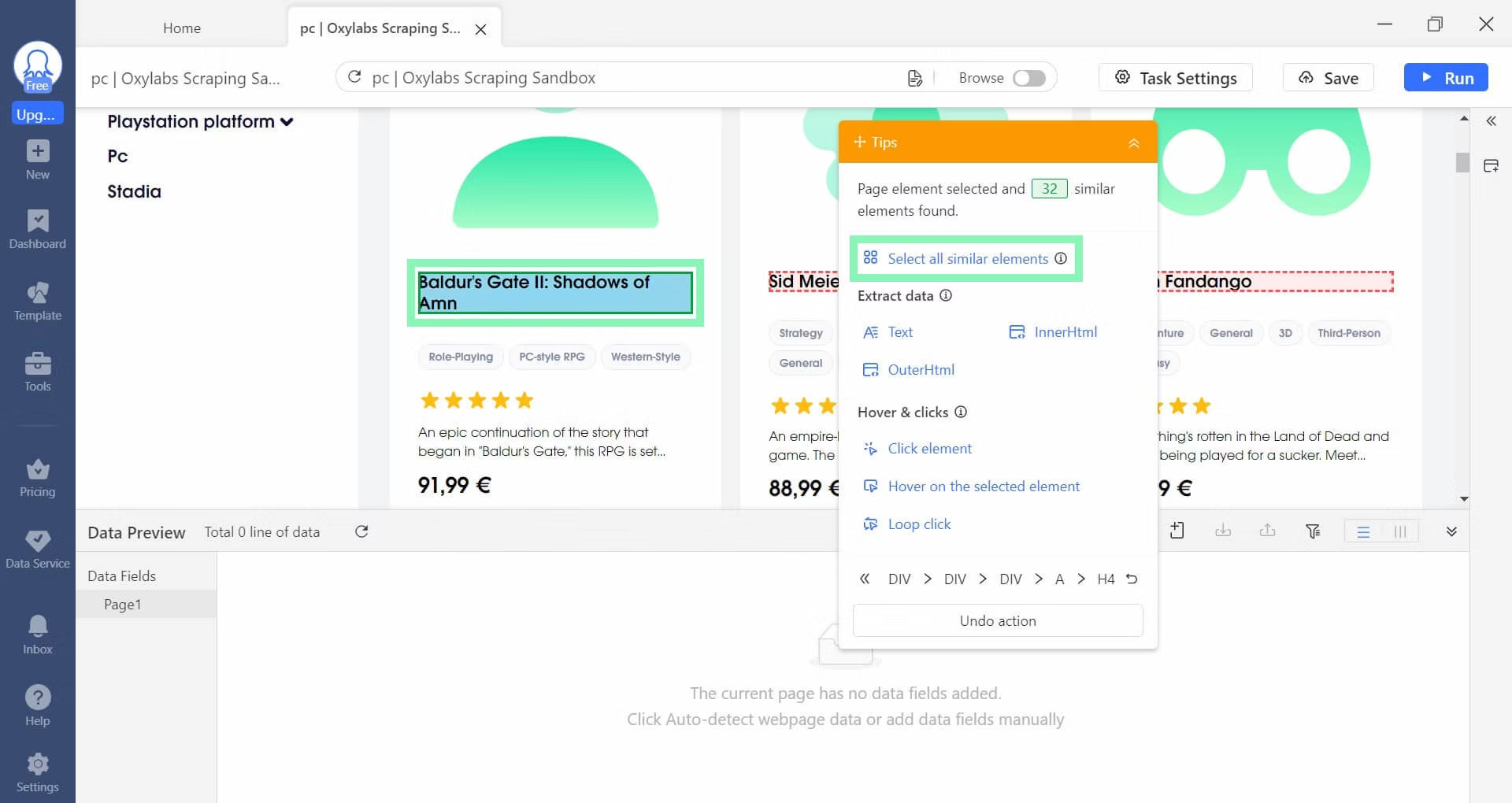

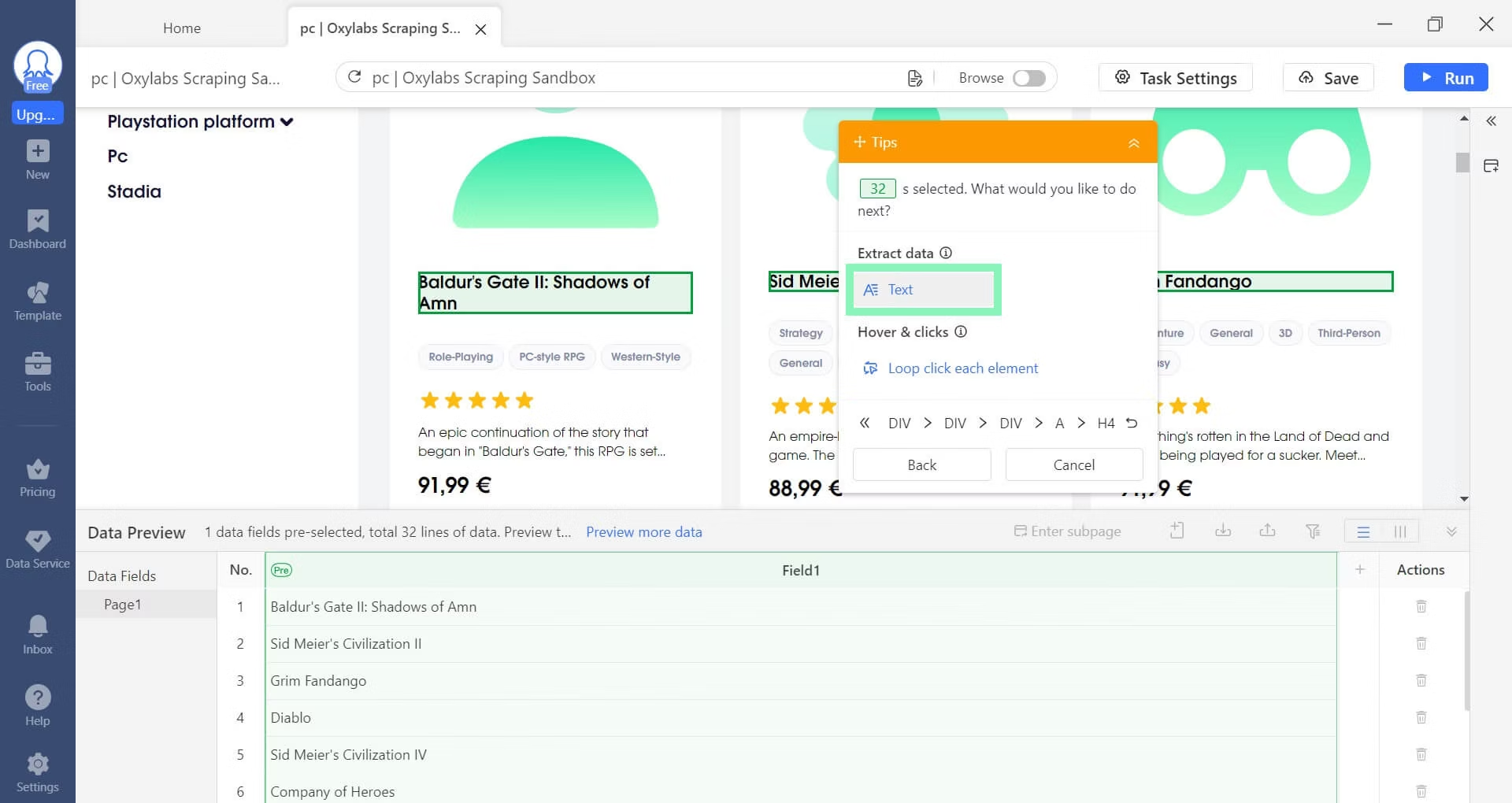

**步骤 1。** 选择你想抓取的目标元素（电子游戏标题）。要提取同一类别中的所有元素，请选择 **选择所有相似元素** 并指定 **文本**.

<figure><img src="https://1216392379-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FU4lV7kLC2Df45W0aLQlX%2Fuploads%2Fgit-blob-5193c197dbf02340d0dff814dc08ed73f3cc8a3f%2Fimage.png?alt=media" alt=""><figcaption></figcaption></figure>

<figure><img src="https://1216392379-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FU4lV7kLC2Df45W0aLQlX%2Fuploads%2Fgit-blob-601479acff48a598fec181f8cb6d728c41e9e827%2Fimage.png?alt=media" alt=""><figcaption></figcaption></figure>

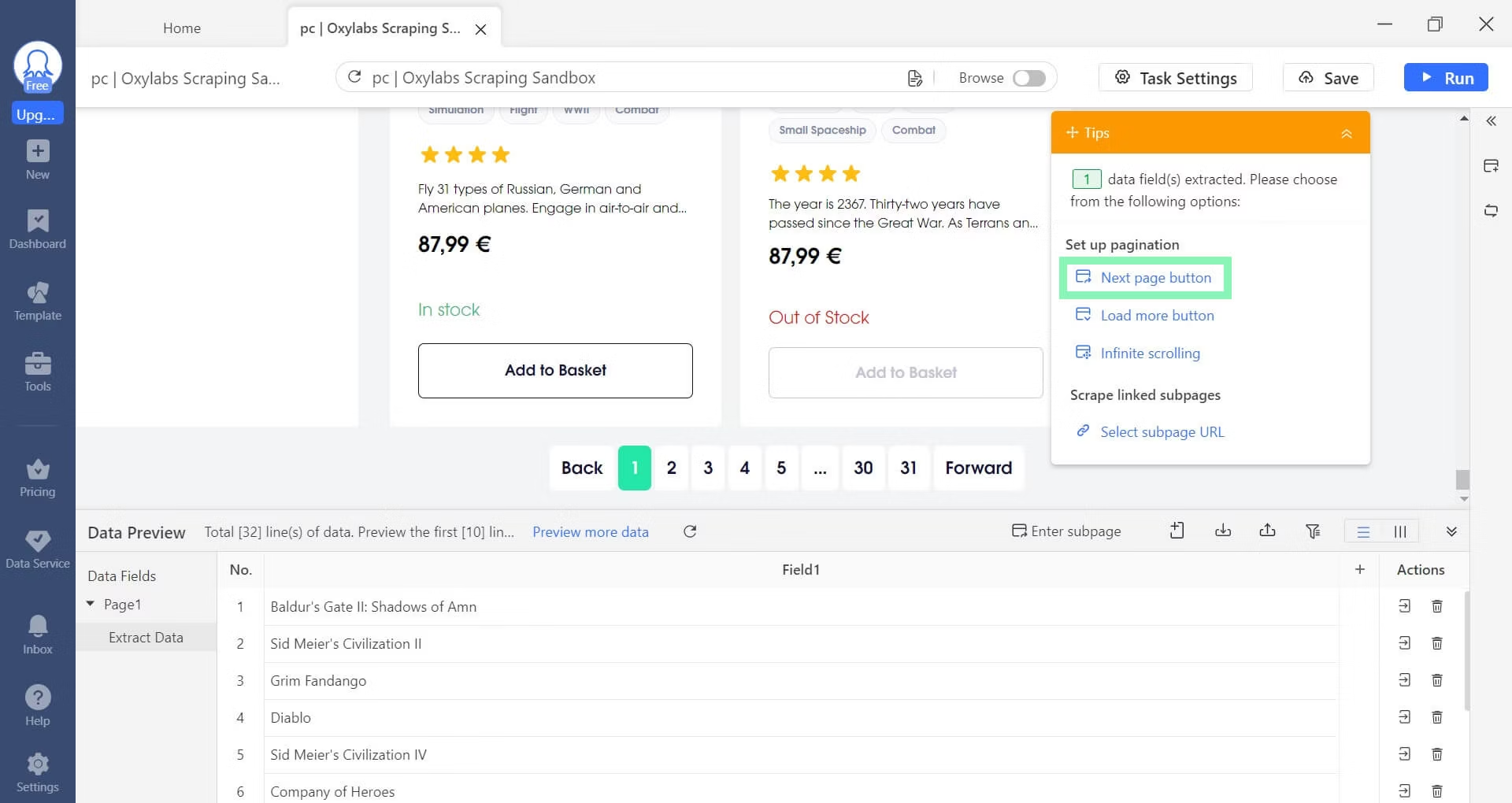

**步骤 2。** 设置分页以抓取多个页面。此网站使用数字分页，因此会提示你选择 **下一页按钮**.

<figure><img src="https://1216392379-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FU4lV7kLC2Df45W0aLQlX%2Fuploads%2Fgit-blob-d2cd7d6725e951f9831e22146eccaa3c24ce8c99%2Fimage.png?alt=media" alt=""><figcaption></figcaption></figure>

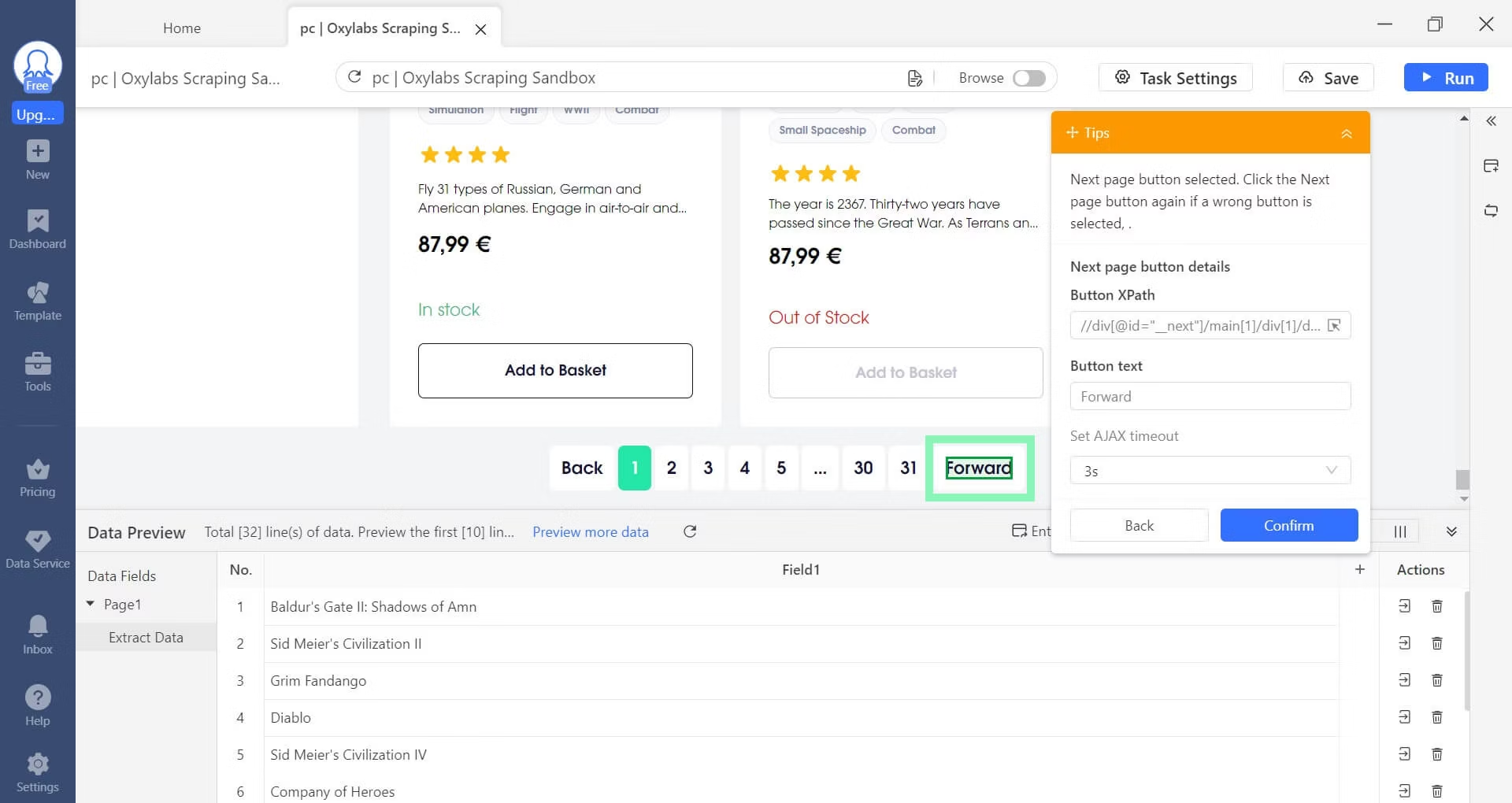

**步骤 3。** 选择页面布局中打开下一页的确切按钮—— **前进** ——以自动分页。

<figure><img src="https://1216392379-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FU4lV7kLC2Df45W0aLQlX%2Fuploads%2Fgit-blob-dcf20caeb6fad59e52187dd234f31252bae87e18%2Fimage.png?alt=media" alt=""><figcaption></figcaption></figure>

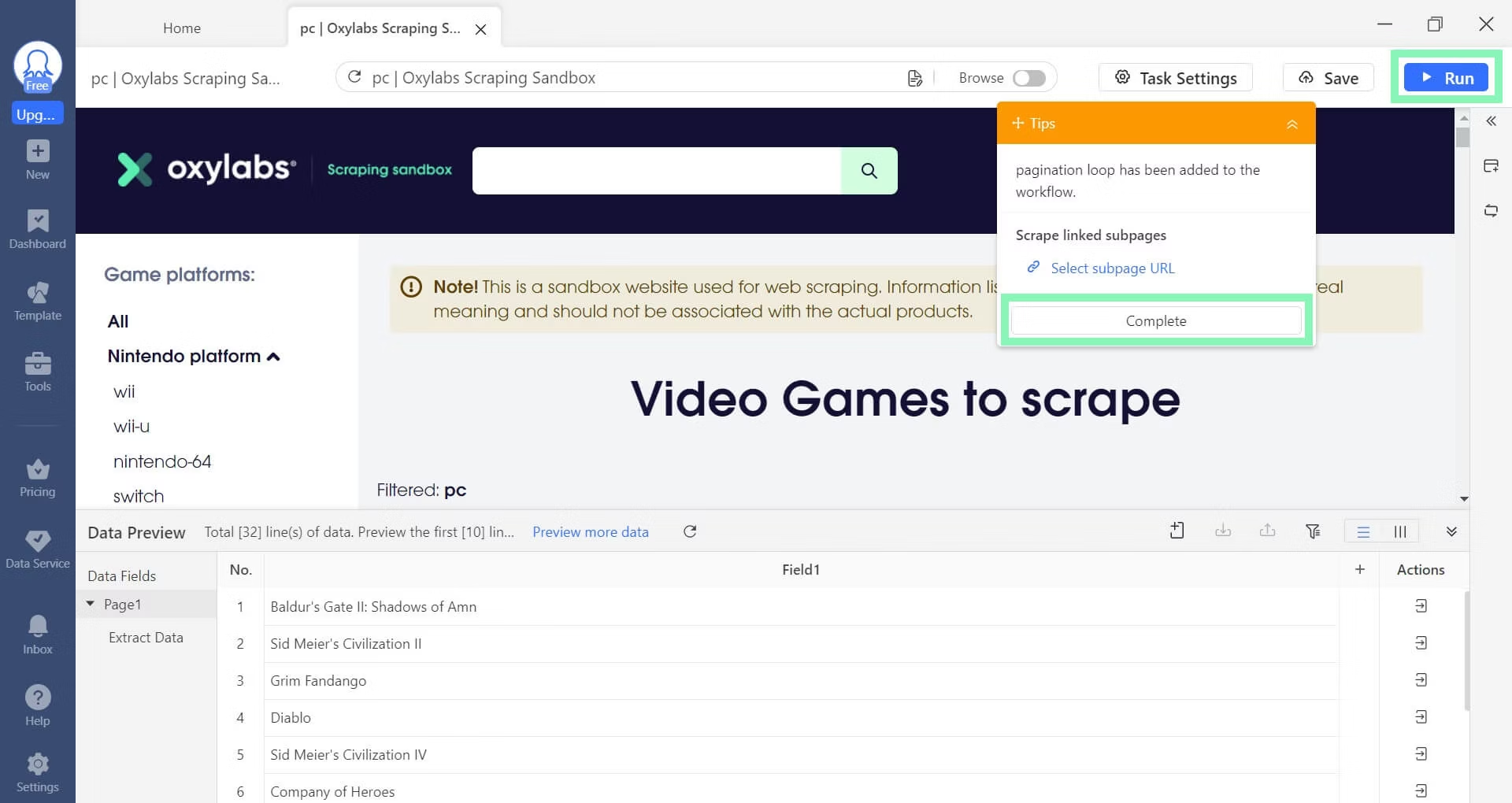

**步骤 4。** 完成抓取设置并按下 **▶运行**.

<figure><img src="https://1216392379-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FU4lV7kLC2Df45W0aLQlX%2Fuploads%2Fgit-blob-391aa7f0b6e1bd1ebac7d94c044097d61d9b30b3%2Fimage.png?alt=media" alt=""><figcaption></figcaption></figure>

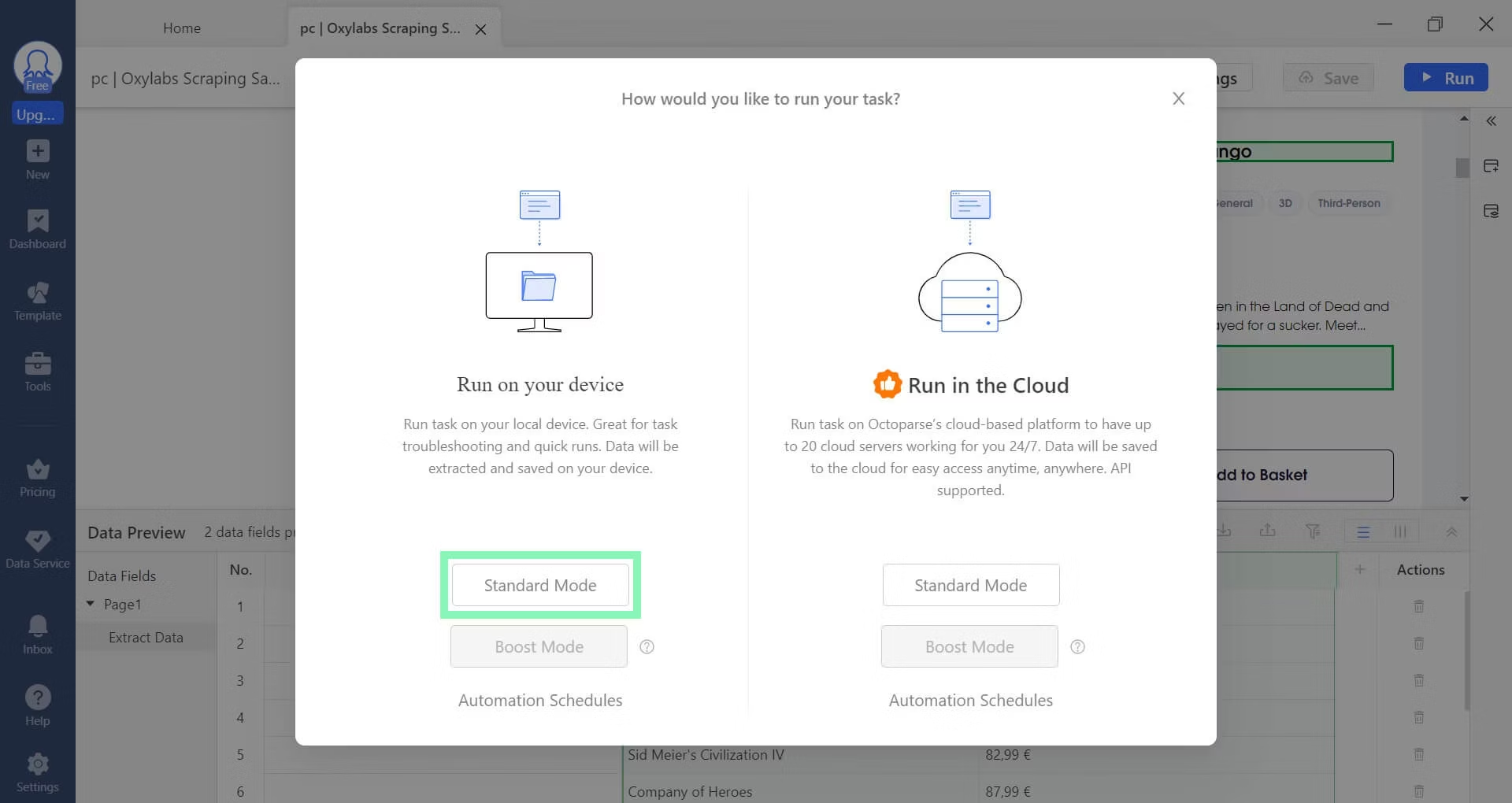

**步骤 5。** 选择 **在你的设备上运行** 并使用 **标准模式** ，以将数据作为文件接收在你的电脑上。

<figure><img src="https://1216392379-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FU4lV7kLC2Df45W0aLQlX%2Fuploads%2Fgit-blob-57cf8bc0711769ed00913b4b7b8f119535be4232%2Fimage.png?alt=media" alt=""><figcaption></figcaption></figure>

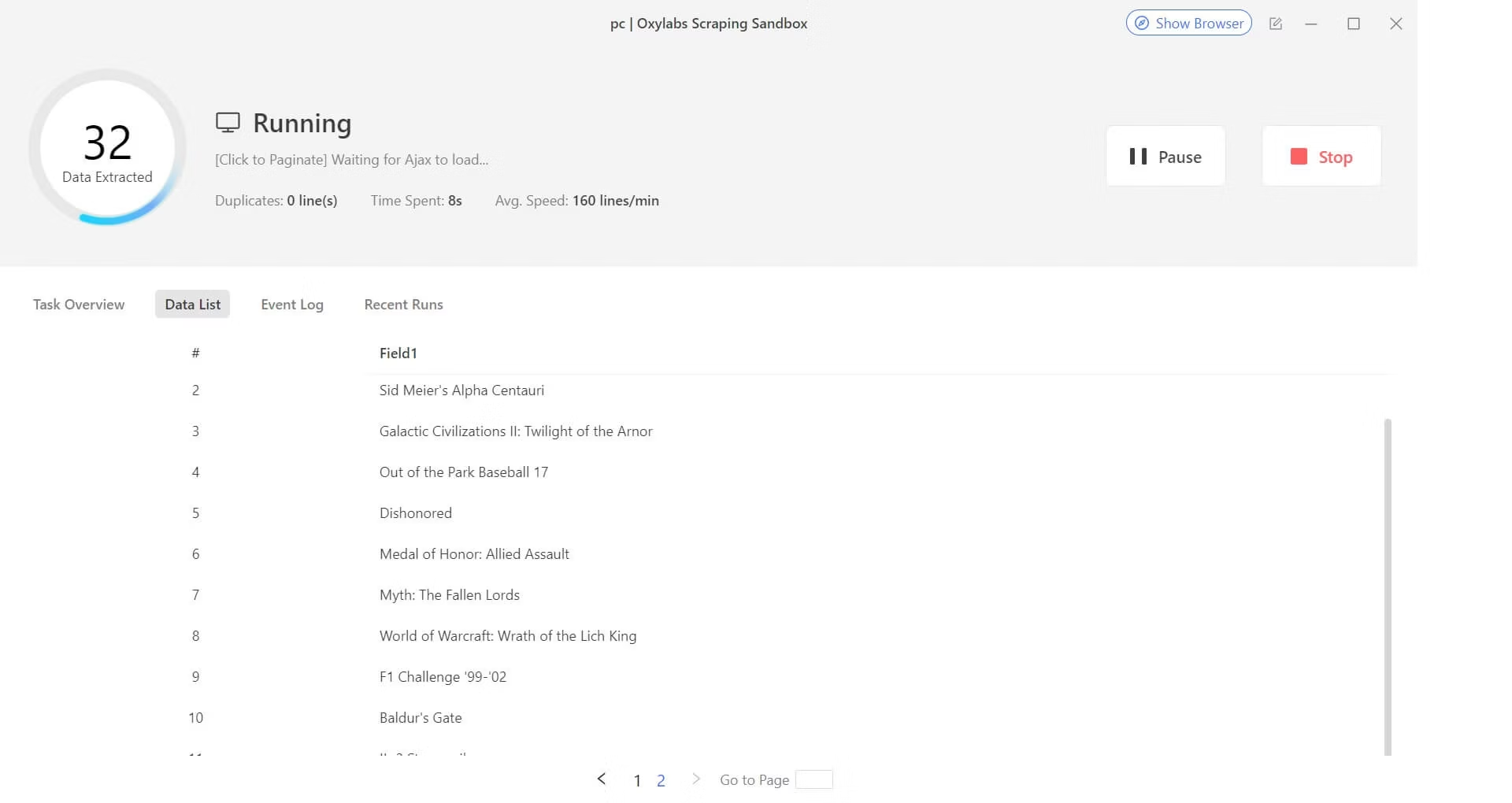

**步骤 6。** 让抓取过程运行直至完成。当到达最终产品页面或你手动停止时，流程就会结束。

<figure><img src="https://1216392379-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FU4lV7kLC2Df45W0aLQlX%2Fuploads%2Fgit-blob-024a6ff9f3dee3c6127d452cb7f02a501291e34f%2Fimage.png?alt=media" alt=""><figcaption></figcaption></figure>

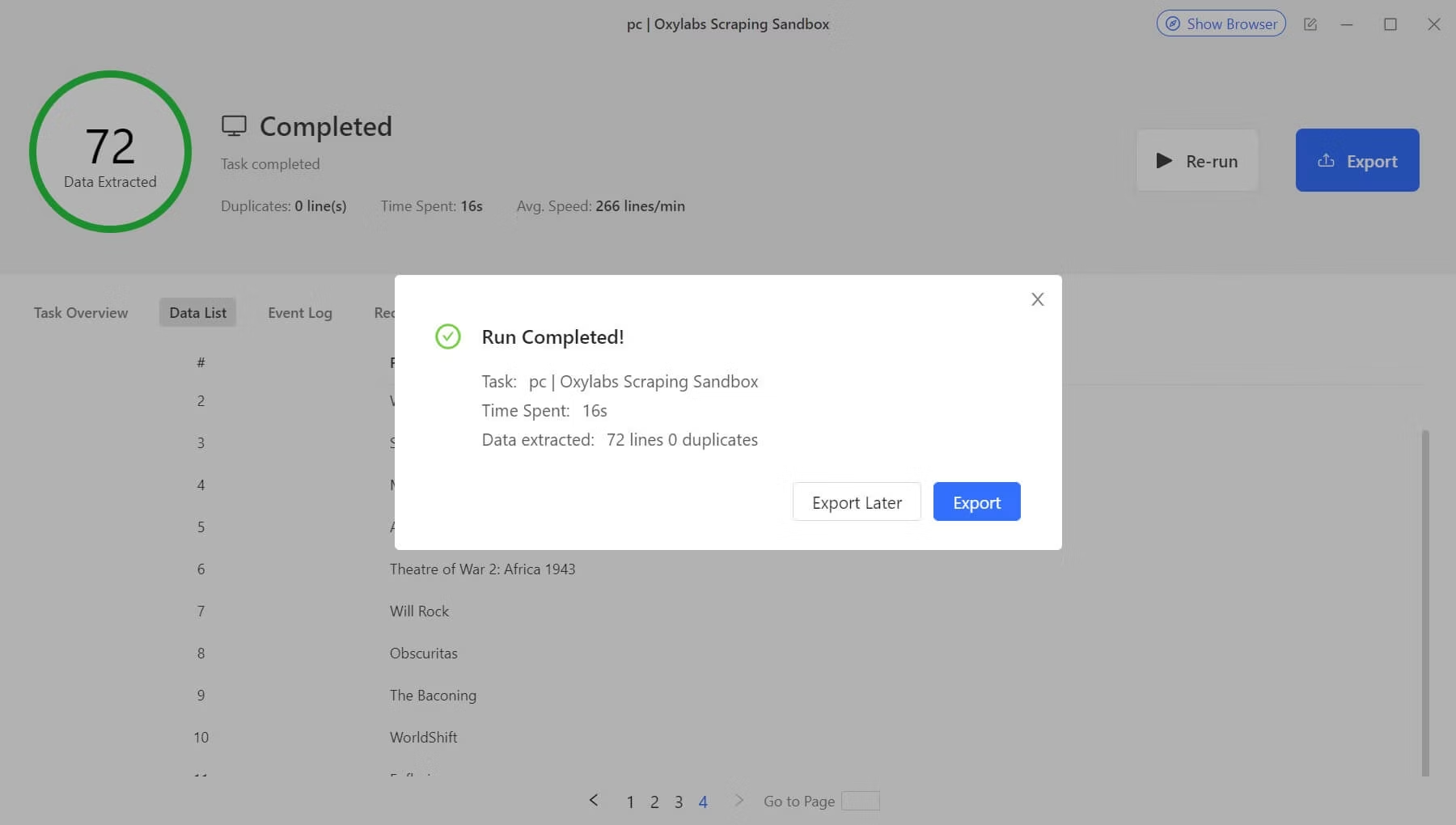

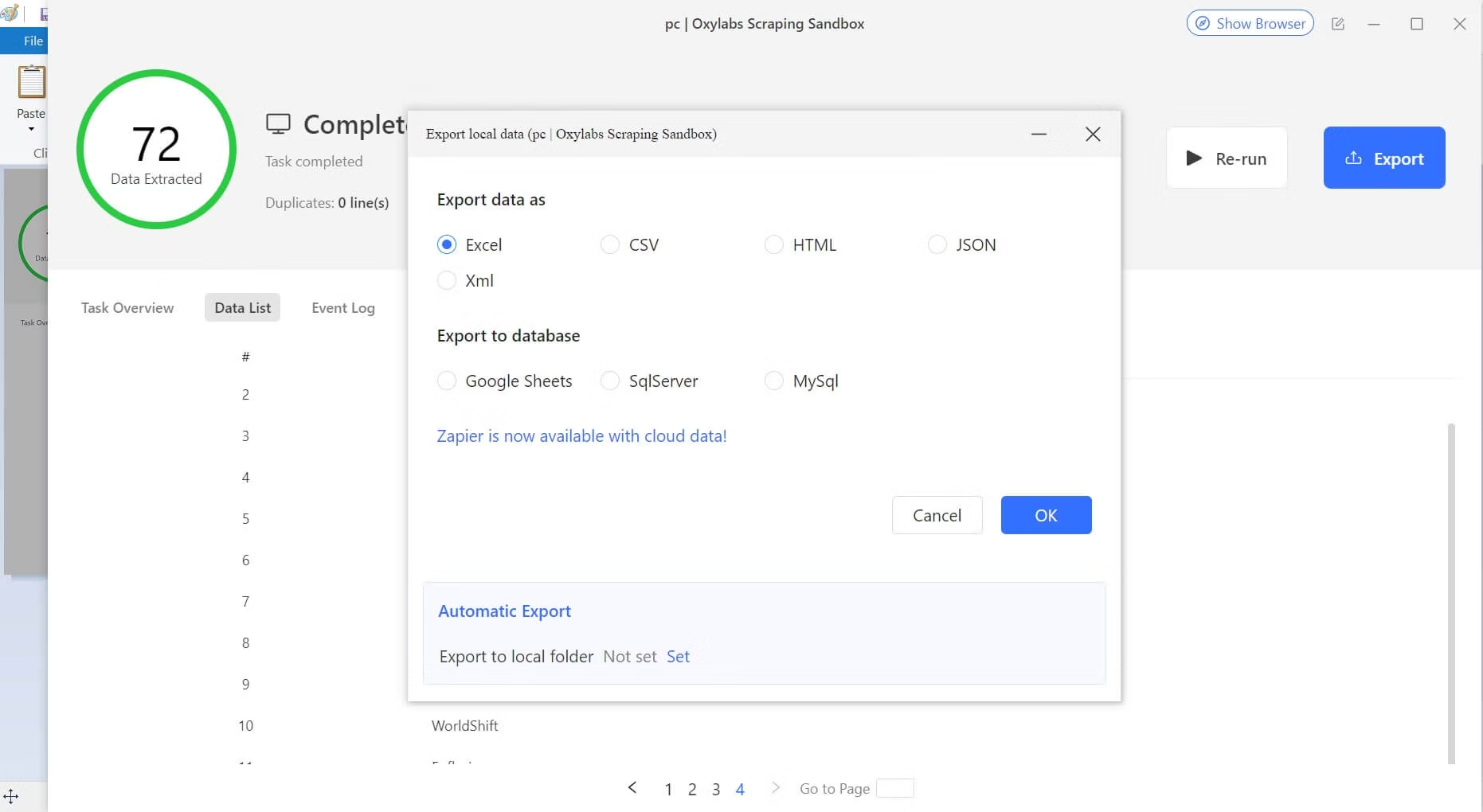

**步骤 7。** 导出已收集的数据并选择文件格式。

<figure><img src="https://1216392379-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FU4lV7kLC2Df45W0aLQlX%2Fuploads%2Fgit-blob-c1a80882d1038da6c432a9c08e29ace0bfd92fd4%2Fimage.png?alt=media" alt=""><figcaption></figcaption></figure>

<figure><img src="https://1216392379-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FU4lV7kLC2Df45W0aLQlX%2Fuploads%2Fgit-blob-3178b33144d3018fa18bdae33d961491653defd7%2Fimage.png?alt=media" alt=""><figcaption></figcaption></figure>

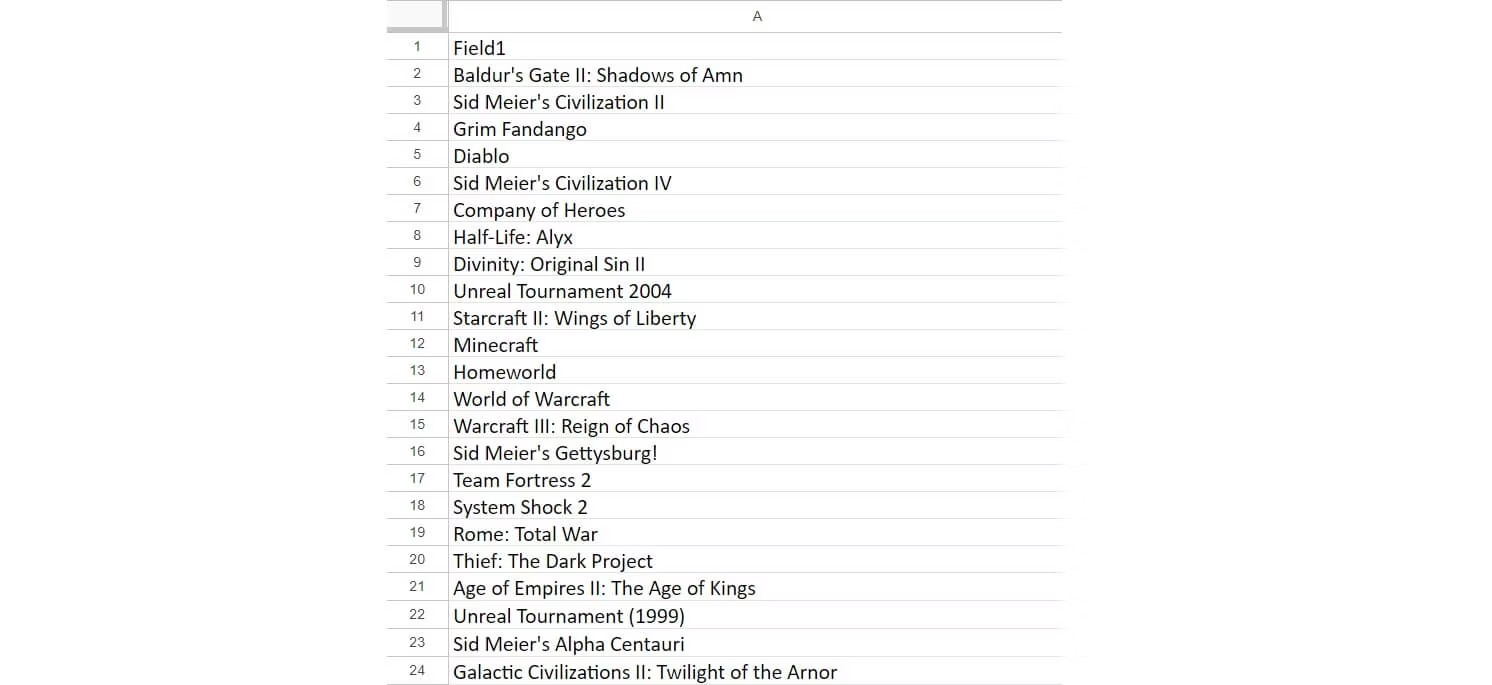

以下是电子表格中的最终结果。

<figure><img src="https://1216392379-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FU4lV7kLC2Df45W0aLQlX%2Fuploads%2Fgit-blob-b815cc6e0f6eadca21ac3c0fdaf4cc1a80c8dc57%2Fimage.png?alt=media" alt=""><figcaption></figcaption></figure>

就是这样——你已经全部设置完毕，可以专注于使用 Octoparse 进行网页抓取任务了。


---
