# Android

Android 是一种基于 Linux 的开源移动设备操作系统，例如智能手机和平板电脑。

使用下面这些指南来配置你的数据中心代理 用于 [**使用移动数据**](#using-mobile-data) 或 [**Wi-Fi 网络**](#setting-up-a-proxy-for-a-wi-fi-network).

{% hint style="warning" %}
**注意：** 本指南中的部分截图为便于说明，展示的是使用住宅代理的设置过程；请参考正文中提供的针对数据中心代理的具体指南。
{% endhint %}

### 使用移动数据

**第 1 步。** 导航到 **设置** > **网络和互联网** > **互联网**.

<figure><img src="https://2655358775-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FzrXw45naRpCZ0Ku9AjY1%2Fuploads%2FKx1I8WgMbDn7OuQEikM3%2Fimage.png?alt=media&#x26;token=a977257c-180a-48bf-9710-9058420f7db8" alt="Android network settings"><figcaption></figcaption></figure>

**第 2 步。** 点击你的移动网络运营商设置，滚动到底部，然后选择 **接入点名称（APN）**.

**第 3 步。** 选择一个 **APN** 你当前正在使用的，以配置 Android 代理设置。

<figure><img src="https://2655358775-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FzrXw45naRpCZ0Ku9AjY1%2Fuploads%2Fs8sCRhPvnsrwQD7ZEThX%2Fimage.png?alt=media&#x26;token=b0ae3755-93f4-47be-83d0-9500a521cb62" alt="Configuring proxy"><figcaption></figcaption></figure>

**第 4 步。** 按照下面指定填写设置字段：

{% hint style="warning" %}
当为移动网络使用代理时，连接类型可以是 `HTTP` 仅此而已。
{% endhint %}

**代理：** `dc.oxylabs.io`

**端口：** `8000`

{% hint style="info" %}
端口 `8000` 将选择一个随机 IP 地址。有关其他设置，例如代理 IP 轮换，请访问 [此文档页面](https://developers.oxylabs.io/proxies/datacenter-proxies/ip-control).
{% endhint %}

**用户名**: `user-username`

**用户名：** `password`

{% hint style="warning" %}
别忘了添加 `user-` 部分。
{% endhint %}

<figure><img src="https://2655358775-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FzrXw45naRpCZ0Ku9AjY1%2Fuploads%2F0milN3nIj7jz3otiBhHv%2Fandroid_integration_DC.png?alt=media&#x26;token=e1e2abc8-4e23-478b-825f-f0d39f70bf30" alt="Proxy details"><figcaption></figcaption></figure>

**第 5 步。** 点击右上角的三个竖点，然后选择 **保存**.

<figure><img src="https://2655358775-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FzrXw45naRpCZ0Ku9AjY1%2Fuploads%2FtS3m8Z5dII1blm1vhB8b%2Fimage.png?alt=media&#x26;token=3c27c28b-6049-49a4-9c60-acee6d55b321" alt="Save changes"><figcaption></figcaption></figure>

**第 6 步。** 通过关闭并重新打开连接来重启网络，以应用更改。

<figure><img src="https://2655358775-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FzrXw45naRpCZ0Ku9AjY1%2Fuploads%2FDQmdPVeb8ArNkeIyue69%2Fimage.png?alt=media&#x26;token=53fb3db6-6d10-45d4-b513-adb4ae165060" alt="Restart the network"><figcaption></figcaption></figure>

**第 7 步。** 最后，打开你的网页浏览器，输入之前指定的凭据，然后按 **登录**.

<figure><img src="https://2655358775-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FzrXw45naRpCZ0Ku9AjY1%2Fuploads%2FwoI5d2m76c8SyTv5JBve%2Fimage.png?alt=media&#x26;token=1600084b-3b02-4d0f-9cdf-b8fcb74a774e" alt="Sign in"><figcaption></figcaption></figure>

就是这样！你现在正在使用带有代理 IP 地址的移动网络。

### 使用 Wi-Fi 网络 <a href="#setting-up-a-proxy-for-a-wi-fi-network" id="setting-up-a-proxy-for-a-wi-fi-network"></a>

**第 1 步。** 导航到 **设置** > **网络和互联网** > **互联网**.

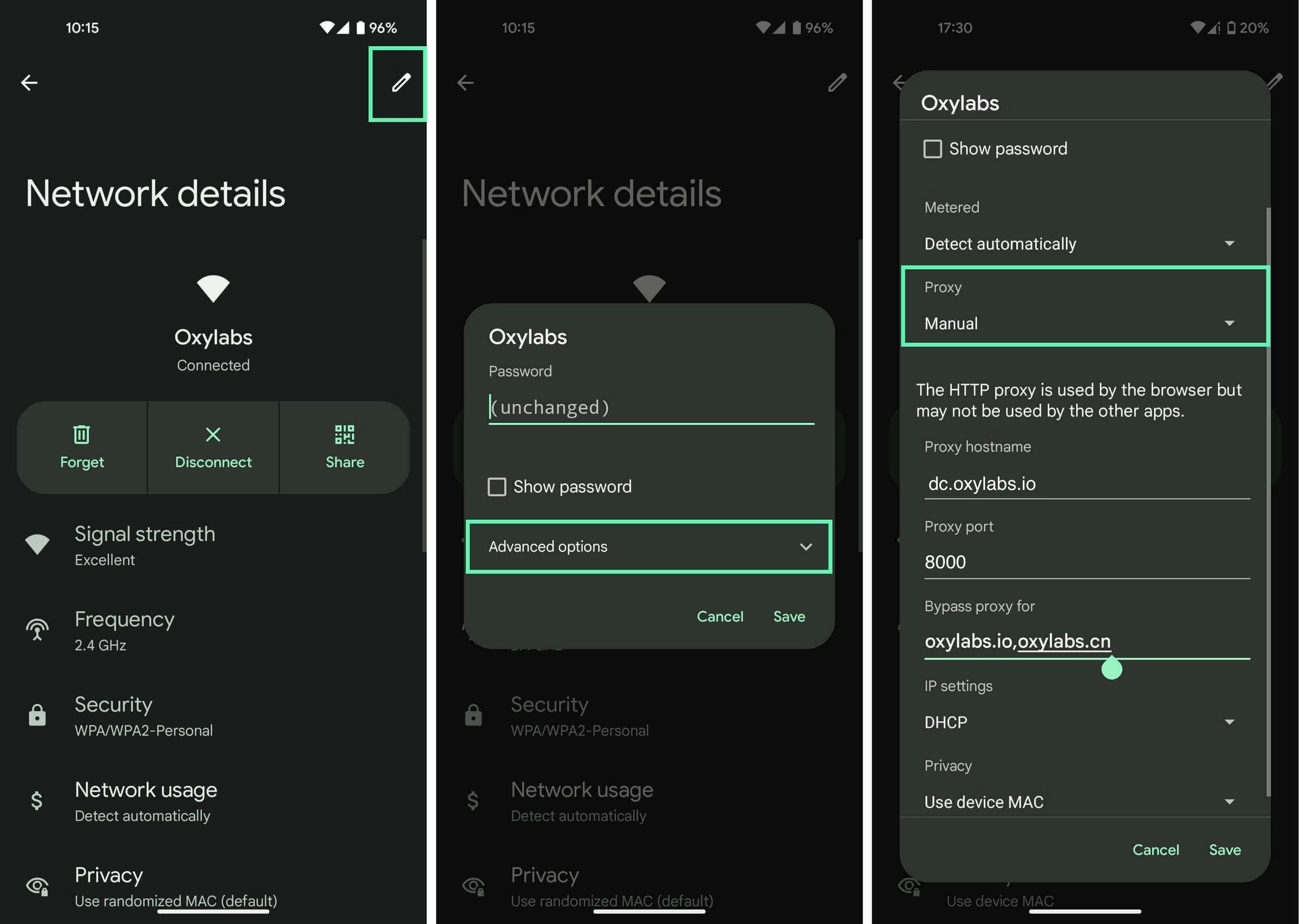

**第 2 步。** 选择你当前的 Wi-Fi 网络，并点击设置图标以访问 **网络详情**.

<figure><img src="https://2655358775-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FzrXw45naRpCZ0Ku9AjY1%2Fuploads%2F3fZ1qn47IyiBukV8Qu4Y%2Fimage.png?alt=media&#x26;token=5fbff8cc-ced6-46d4-ac17-07958c061cd9" alt="Network details"><figcaption></figcaption></figure>

**第 3 步。** 点击右上角的编辑按钮并展开 **高级选项** 部分，以配置 Android 代理设置。

**第 4 步。** 在 **代理，** 选择 **手动** 并输入你的代理详情以及凭据：

{% hint style="warning" %}
当为 Wi-Fi 网络使用代理时，连接类型可以是 `HTTP` 仅此而已。
{% endhint %}

**代理主机名：** `dc.oxylabs.io`

**代理端口：** `8000`

{% hint style="info" %}
端口 `8000` 将选择一个随机 IP 地址。有关其他设置，例如代理 IP 轮换，请访问 [此文档页面](https://developers.oxylabs.io/proxies/datacenter-proxies/ip-control).
{% endhint %}

**用户名**: `user-username`

**用户名：** `password`

{% hint style="warning" %}
别忘了添加 `user-` 部分。
{% endhint %}

<figure><img src="https://2655358775-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FzrXw45naRpCZ0Ku9AjY1%2Fuploads%2FX4njygAUAEoQvldFnnxa%2Fandroid-integration-dc2.jpg?alt=media&#x26;token=49ca53cc-3e5c-45d2-8d65-cff52dc6eaa3" alt="Configure proxy"><figcaption></figcaption></figure>

**第 5 步。** 最后，打开你的网页浏览器，输入之前指定的凭据，然后按 **登录**.

<figure><img src="https://2655358775-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FzrXw45naRpCZ0Ku9AjY1%2Fuploads%2FJLuP2GxZ3KZGvO6SolvO%2Fimage.png?alt=media&#x26;token=15da95ba-81ad-43c0-9ae5-053ef8921d2f" alt="Sign in"><figcaption></figcaption></figure>

就是这样！你现在正在使用带有代理 IP 地址的 Wi-Fi 网络。

查找原始 Android 集成博客文章 [这里](https://oxylabs.io/resources/integrations/android).


---
