# Lens

Google Lens API 从提供的图片 URL 中提取视觉搜索结果。返回视觉匹配的图片结果，包括标题、URL、域名等。

我们的 `google_lens` 我们的数据源使您能够在执行图像搜索时，从 Google Lens 功能中提取结果。

{% hint style="info" %}
查看输出 [**数据字典**](#data-dictionary) 适用于每个 Lens SERP 功能，提供简要描述、截图、解析后的 JSON 代码片段，以及定义每个解析字段的表格。您可以通过右侧导航或向下滚动页面查看详细信息。
{% endhint %}

## 请求示例

API 会向 Google Lens 功能发送请求，以检索与图像内容相关的结构化数据。

{% tabs %}
{% tab title="cURL" %}

```shell
curl 'https://realtime.oxylabs.io/v1/queries' \\
--user 'USERNAME:PASSWORD' \\
-H 'Content-Type: application/json' \\
-d '{
        "source": "google_lens",
        "query": "https://www.beginningboutique.com.au/cdn/shop/files/Flossie-Pink-Maxi-Sleeveless-Dress_750x.jpg",
        "parse": "true"
    }'
```

{% endtab %}

{% tab title="Python" %}

```python
import requests
from pprint import pprint

# 结构化载荷。
payload = {
    'source': 'google_lens',
    'query': 'https://www.beginningboutique.com.au/cdn/shop/files/Flossie-Pink-Maxi-Sleeveless-Dress_750x.jpg',
    'parse': 'true'
}

# 获取响应。
response = requests.request(
    'POST',
    'https://realtime.oxylabs.io/v1/queries',
    auth=('USERNAME', 'PASSWORD'),
    json=payload,
)

# Print prettified response to stdout.
pprint(response.json())

```

{% endtab %}

{% tab title="Node.js" %}

```javascript
const https = require("https");

const username = "USERNAME";
const password = "PASSWORD";
const body = {
    source: "google_lens",
    query: "https://www.beginningboutique.com.au/cdn/shop/files/Flossie-Pink-Maxi-Sleeveless-Dress_750x.jpg",
    解析：true,
};

const options = {
    hostname: "realtime.oxylabs.io",
    path: "/v1/queries",
    method: "POST",
    headers: {
        "Content-Type": "application/json",
        Authorization:
            "Basic " + Buffer.from(`${username}:${password}`).toString("base64"),
    },
};

const request = https.request(options, (response) => {
    let data = "";

    response.on("data", (chunk) => {
        data += chunk;
    });

    response.on("end", () => {
        const responseData = JSON.parse(data);
        console.log(JSON.stringify(responseData, null, 2));
    });
});

request.on("error", (error) => {
    console.error("Error:", error);
});

request.write(JSON.stringify(body));
request.end();
```

{% endtab %}

{% tab title="HTTP" %}

```http
https://realtime.oxylabs.io/v1/queries?source=google_lens&query=https%3A%2F%2Fwww.beginningboutique.com.au%2Fcdn%2Fshop%2Ffiles%2FFlossie-Pink-Maxi-Sleeveless-Dress_750x.jpg&parse=true&access_token=12345abcde
```

{% endtab %}

{% tab title="PHP" %}

```php
<?php

$params = array(
    'source' => 'google_lens',
    'query' => 'https://www.beginningboutique.com.au/cdn/shop/files/Flossie-Pink-Maxi-Sleeveless-Dress_750x.jpg',
    'parse' => true
);

$ch = curl_init();

curl_setopt($ch, CURLOPT_URL, "https://realtime.oxylabs.io/v1/queries");
curl_setopt($ch, CURLOPT_RETURNTRANSFER, 1);
curl_setopt($ch, CURLOPT_POSTFIELDS, json_encode($params));
curl_setopt($ch, CURLOPT_POST, 1);
curl_setopt($ch, CURLOPT_USERPWD, "USERNAME" . ":" . "PASSWORD");


$headers = array();
$headers[] = "Content-Type: application/json";
curl_setopt($ch, CURLOPT_HTTPHEADER, $headers);

$result = curl_exec($ch);
echo $result;

if (curl_errno($ch)) {
    echo 'Error:' . curl_error($ch);
}
curl_close($ch);
```

{% endtab %}

{% tab title="Golang" %}

```go
package main

import (
	"bytes"
	"encoding/json"
	"fmt"
	"io/ioutil"
	"net/http"
)

func main() {
	const Username = "USERNAME"
	const Password = "PASSWORD"

	payload := map[string]interface{}{
		"source": "google_lens",
		"query":  "https://www.beginningboutique.com.au/cdn/shop/files/Flossie-Pink-Maxi-Sleeveless-Dress_750x.jpg",
		"parse":  true,
	}

	jsonValue, _ := json.Marshal(payload)

	client := &http.Client{}
	request, _ := http.NewRequest("POST",
		"https://realtime.oxylabs.io/v1/queries",
		bytes.NewBuffer(jsonValue),
	)

	request.SetBasicAuth(Username, Password)
	response, _ := client.Do(request)

	responseText, _ := ioutil.ReadAll(response.Body)
	fmt.Println(string(responseText))
}
```

{% endtab %}

{% tab title="C#" %}

```csharp
using System;
using System.Collections.Generic;
using System.Net.Http;
using System.Net.Http.Json;
using System.Threading.Tasks;

namespace OxyApi
{
    class Program
    {
        static async Task Main()
        {
            const string Username = "USERNAME";
            const string Password = "PASSWORD";

            var parameters = new {
                source = "google_lens",
                query = "https://www.beginningboutique.com.au/cdn/shop/files/Flossie-Pink-Maxi-Sleeveless-Dress_750x.jpg",
                parse = true
            };

            var client = new HttpClient();

            Uri baseUri = new Uri("https://realtime.oxylabs.io");
            client.BaseAddress = baseUri;

            var requestMessage = new HttpRequestMessage(HttpMethod.Post, "/v1/queries");
            requestMessage.Content = JsonContent.Create(parameters);

            var authenticationString = $"{Username}:{Password}";
            var base64EncodedAuthenticationString = Convert.ToBase64String(System.Text.ASCIIEncoding.UTF8.GetBytes(authenticationString));
            requestMessage.Headers.Add("Authorization", "Basic " + base64EncodedAuthenticationString);

            var response = await client.SendAsync(requestMessage);
            var contents = await response.Content.ReadAsStringAsync();

            Console.WriteLine(contents);
        }
    }
}
```

{% endtab %}

{% tab title="Java" %}

```java
package org.example;

import okhttp3.*;
import org.json.JSONObject;
import java.util.concurrent.TimeUnit;

public class Main implements Runnable {
    private static final String AUTHORIZATION_HEADER = "Authorization";
    public static final String USERNAME = "USERNAME";
    public static final String PASSWORD = "PASSWORD";

    public void run() {
        JSONObject jsonObject = new JSONObject();
        jsonObject.put("source", "google_lens");
        jsonObject.put("query", "https://www.beginningboutique.com.au/cdn/shop/files/Flossie-Pink-Maxi-Sleeveless-Dress_750x.jpg");
        jsonObject.put("parse", true);

        Authenticator authenticator = (route, response) => {
            String credential = Credentials.basic(USERNAME, PASSWORD);
            return response
                    .request()
                    .newBuilder()
                    .header(AUTHORIZATION_HEADER, credential)
                    .build();
        };

        var client = new OkHttpClient.Builder()
                .authenticator(authenticator)
                .readTimeout(180, TimeUnit.SECONDS)
                .build();

        var mediaType = MediaType.parse("application/json; charset=utf-8");
        var body = RequestBody.create(jsonObject.toString(), mediaType);
        var request = new Request.Builder()
                .url("https://realtime.oxylabs.io/v1/queries")
                .post(body)
                .build();

        try (var response = client.newCall(request).execute()) {
            if (response.body() != null) {
                try (var responseBody = response.body()) {
                    System.out.println(responseBody.string());
                }
            }
        } catch (Exception exception) {
            System.out.println("Error: " + exception.getMessage());
        }

        System.exit(0);
    }

    public static void main(String[] args) {
        new Thread(new Main()).start();
    }
}
```

{% endtab %}

{% tab title="JSON" %}

```json
{
    "source": "google_lens",
    "query": "https://www.beginningboutique.com.au/cdn/shop/files/Flossie-Pink-Maxi-Sleeveless-Dress_750x.jpg",
    "parse": "true"
}
```

{% endtab %}
{% endtabs %}

我们在示例中使用同步 [**Realtime**](/products/cn/web-scraper-api/integration-methods/realtime.md) 集成方法。如果您想使用 [**Proxy Endpoint**](/products/cn/web-scraper-api/integration-methods/proxy-endpoint.md) 或异步 [**Push-Pull**](/products/cn/web-scraper-api/integration-methods/push-pull.md) 集成，请参阅 [**集成方法**](/products/cn/web-scraper-api/integration-methods.md) 部分。

## 请求参数值

### 通用

用于抓取 Google Lens 结果的基础设置和自定义选项。

<table><thead><tr><th width="222">参数</th><th width="350.3333333333333">描述</th><th>默认值</th></tr></thead><tbody><tr><td><mark style="background-color:green;"><strong>source</strong></mark></td><td>设置抓取器。</td><td><code>google_lens</code></td></tr><tr><td><mark style="background-color:green;"><strong>查询</strong></mark></td><td>要搜索的图片 URL。</td><td>-</td></tr><tr><td><code>render</code></td><td>设置为时启用 JavaScript 渲染 <code>html</code>. <a href="/products/cn/web-scraper-api/features/js-rendering-and-browser-control.md#javascript-rendering"><strong>更多信息</strong></a><strong>.</strong></td><td>-</td></tr><tr><td><code>解析</code></td><td>设置为以下值时返回解析后的数据： <code>true</code>。查看输出 <a href="#output-data-dictionary"><strong>数据字典</strong></a>.</td><td><code>false</code></td></tr><tr><td><code>callback_url</code></td><td>回调端点的 URL。 <a href="/products/cn/web-scraper-api/integration-methods/push-pull.md"><strong>更多信息</strong></a></td><td>-</td></tr><tr><td><code>user_agent_type</code></td><td>设备类型和浏览器。完整列表可在 <a href="/products/cn/web-scraper-api/features/http-context-and-job-management/user-agent-type.md"><strong>此处</strong></a>.</td><td><code>desktop</code></td></tr></tbody></table>

\- 必填参数

### 本地化

使搜索结果适配特定地理位置和语言。

<table><thead><tr><th width="222">参数</th><th width="350.3333333333333">描述</th><th>默认值</th></tr></thead><tbody><tr><td><code>geo_location</code></td><td>结果应适配的地理位置。正确使用此参数对于获取正确数据极其重要。有关更多信息，请阅读我们建议的 <code>geo_location</code> 参数结构 <a href="/products/cn/web-scraper-api/features/localization/serp-localization.md#google"><strong>此处</strong></a><strong>.</strong></td><td>-</td></tr><tr><td><code>locale</code></td><td><code>Accept-Language</code> 标头值，它会更改您的 Google 搜索页面网页界面语言。 <a href="/products/cn/web-scraper-api/features/localization/domain-locale.md#locale-1"><strong>更多信息</strong></a>.</td><td>-</td></tr></tbody></table>

## 结构化数据

```json
{
    "results": [
        {
            "content": {
                "results": {
                    "organic": [
                        {
                            "pos": 1,
                            "url": "https://www.pinterest.com/shopping/free-people-pink-maxi-dress/903333914404/",
                            "title": "Free People Pink Maxi Dress - Shop on Pinterest",
                            "domain": "Pinterest",
                            "pos_overall": 1,
                            "url_thumbnail": "https://encrypted-tbn2.gstatic.com/images?q=tbn:ANd9GcR5hGHj6ima-cDFEYeMNi-7ngOomqkHz_1Joc4_DVA5gDTprXGJ"
                        },
                        ...
                        {
                            "pos": 59,
                            "url": "https://www.jjshouse.com/Sheath-Column-One-Shoulder-Floor-Length-Chiffon-Junior-Bridesmaid-Dress-With-Ruffle-Lace-Beading-009119572-g119572",
                            "title": "Sheath/Column One-Shoulder Floor-Length Chiffon Junior Bridesmaid Dress With Ruffle Lace Beading",
                            "domain": "JJsHouse.com",
                            "pos_overall": 59,
                            "url_thumbnail": "https://encrypted-tbn2.gstatic.com/images?q=tbn:ANd9GcR8evuMBA8z7Aa8mcYh97Y2hbpB3YIEV0ZSs2gkpYIyF3pmyj_X"
                        }
                    ],
                    "total_results_count": 59
                },
                "parse_status_code": 12000
            },
            "created_at": "2024-03-13 15:07:42",
            "updated_at": "2024-03-13 15:07:45",
            "page": 1,
            "url": "https://lens.google.com/uploadbyurl?url=https://www.beginningboutique.com.au/cdn/shop/files/Flossie-Pink-Maxi-Sleeveless-Dress_750x.jpg&uule=w+CAIQICINdW5pdGVkIHN0YXRlcw&gl=us&hl=en",
            "job_id": "7173696230097183745",
            "status_code": 200,
            "parser_type": ""
        }
    ],
}
```

## 输出数据字典

#### **JSON 结构**

该表概述了 Google Lens 搜索结果的关键元素。下表列出了我们解析的每个 SERP 功能的详细清单，以及其描述和数据类型。该表还包含一些元数据。

<table><thead><tr><th width="264.3333333333333">键</th><th width="319">描述</th><th>类型</th></tr></thead><tbody><tr><td><code>results</code></td><td>包含搜索结果的字典。</td><td>数组</td></tr><tr><td><code>results.organic</code></td><td>未付费图片结果及其各自详细信息的列表。</td><td>数组</td></tr><tr><td><code>结果总数</code></td><td>为图片 URL 找到的结果总数。</td><td>整数</td></tr><tr><td><code>parse_status_code</code></td><td>解析任务的状态码。你可以查看所描述的解析器状态码 <a href="https://github.com/oxylabs/gitbook-public-english/blob/master/scraping-solutions/web-scraper-api/targets/google/broken-reference/README.md"><strong>此处</strong></a>.</td><td>整数</td></tr><tr><td><code>创建时间</code></td><td>抓取任务创建时的时间戳。</td><td>时间戳</td></tr><tr><td><code>更新时间</code></td><td>抓取任务完成时的时间戳。</td><td>时间戳</td></tr><tr><td><code>page</code></td><td>相对于 Google SERP 分页的页码。</td><td>整数</td></tr><tr><td><code>任务ID</code></td><td>与该抓取任务关联的任务 ID。</td><td>字符串</td></tr><tr><td><code>状态码</code></td><td>抓取任务的状态码。你可以查看所描述的抓取器状态码 <a href="https://github.com/oxylabs/gitbook-public-english/blob/master/scraping-solutions/web-scraper-api/targets/google/broken-reference/README.md"><strong>此处</strong></a>.</td><td>整数</td></tr></tbody></table>

### 自然搜索

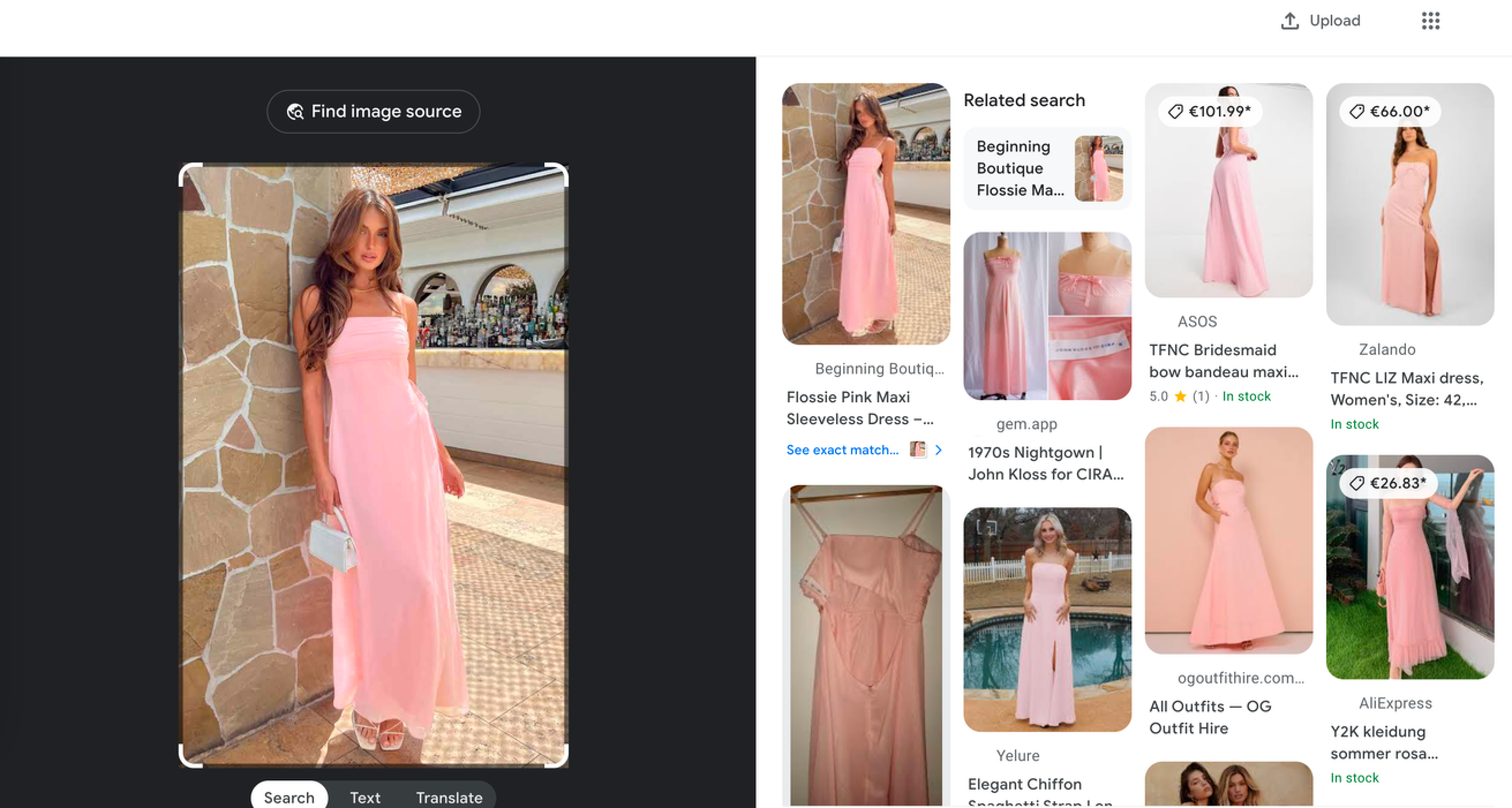

Google Lens 会综合多种因素，根据用户上传图像的内容，为用户提供最相关、最有用的信息。

<figure><img src="https://1830353461-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FBaJCXoqO1zdFnaMnCKrg%2Fuploads%2Fgit-blob-8e10fb01b15cd7ea14440367eb6761fc85e13e15%2Fgoogle_lens.png?alt=media" alt=""><figcaption></figcaption></figure>

```json
...
{
    "pos": 1,
    "url": "https://www.pinterest.com/shopping/free-people-pink-maxi-dress/903333914404/",
    "title": "Free People Pink Maxi Dress - Shop on Pinterest",
    "domain": "Pinterest",
    "pos_overall": 1,
    "url_thumbnail": "https://encrypted-tbn2.gstatic.com/images?q=tbn:ANd9GcR5hGHj6ima-cDFEYeMNi-7ngOomqkHz_1Joc4_DVA5gDTprXGJ"
},
...
```

<table><thead><tr><th width="241">键（results.organic）</th><th width="363">描述</th><th>类型</th></tr></thead><tbody><tr><td><code>pos</code></td><td>用于表示某个项目在所有 Google Lens 结果中的位置的指示器。</td><td>整数</td></tr><tr><td><code>url</code></td><td>Google Lens 结果的 URL。</td><td>字符串</td></tr><tr><td><code>title</code></td><td>结果的标题。</td><td>字符串</td></tr><tr><td><code>domain</code></td><td>Google Lens 结果的来源。</td><td>字符串</td></tr><tr><td><code>pos_overall</code></td><td>Google Lens 结果在 SERP 中的位置索引。</td><td>整数</td></tr><tr><td><code>url_thumbnail</code></td><td>Google Lens 结果的 base64 编码缩略图图像。</td><td>字符串</td></tr></tbody></table>


---
